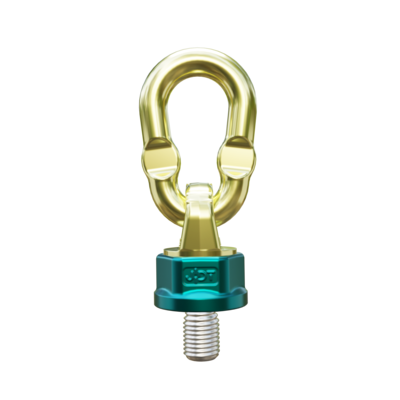

Øjeboltene kan belastes med arbejdsbelastningsgrænse i alle retninger. Alle øjeboltene er drejet for at undgå brud i øjet, hvilket også gør det muligt at folde den sammen, når den ikke er i brug. Desuden har den en kuglelejesvirvel hvilket gør, at løfteøjet altid kan stå i den rigtige retning til belastningen.
- Materiale: Øje og svirvel af legeret stål klasse 10.
- Mærkning: CE, UKCA, WLL.
- Overflade: Malet.
- Bemærk: Overfladen, som løfteøjet skal påmonteres skal være flad og tolerere den belastning den skal udsættes for.
- Sikkerhedsfaktor: 4:1
Belastningstabel
|
Løftemetode
|
|
|
|
|
|
|
|
|
|
|
Antal parter
|
|
1
|
1
|
2
|
2
|
2
|
|
3+4
|
3+4
|
|
Hældningsvinkel
|
|
0°
|
90°
|
0°
|
90°
|
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
|
Type
|
Gevind |
WLL t
|
|||||||
|
TP 0,7
|
M 10
|
1,0
|
0,5
|
2,0
|
1,0
|
0,7
|
0,5
|
1,0
|
0,75
|
|
|
M 12
|
1,4
|
0,7
|
2,8
|
1,4
|
1,0
|
0,7
|
1,4
|
1,0
|
|
|
M 14
|
2,0
|
1,0
|
4,0
|
2,0
|
1,4
|
1,0
|
2,12
|
1,5
|
|
TP 1,4
|
M 16
|
2,8
|
1,4
|
5,6
|
2,8
|
2,0
|
1,4
|
3,0
|
2,12
|
|
|
M 20
|
3,4
|
1,7
|
6,8
|
3,4
|
2,4
|
1,7
|
3,55
|
2,5
|
|
|
M 24
|
3,4
|
1,7
|
6,8
|
3,4
|
2,4
|
1,7
|
3,55
|
2,5
|
|
TP 2,5
|
M 20
|
5,0
|
2,5
|
10,0
|
5,0
|
3,55
|
2,5
|
5,3
|
3,75
|
|
TP 4
|
M 24
|
8,0
|
4,0
|
16,0
|
8,0
|
5,6
|
4,0
|
8,5
|
6,0
|
|
|
M 30
|
8,0
|
4,0
|
16,0
|
8,0
|
5,6
|
4,0
|
8,5
|
6,0
|
|
TP 6,7
|
M 30
|
12,0
|
6,7
|
24,0
|
13,4
|
9,5
|
6,7
|
14,0
|
10,0
|
|
TP 8
|
M 30
|
12,0
|
8,0
|
24,0
|
16,0
|
11,2
|
8,0
|
16,0
|
12,0
|
|
TP 10
|
M 36
|
15,0
|
10,0
|
30,0
|
20,0
|
14,0
|
10,0
|
21,2
|
15,0
|
|
TP 12,5
|
M 42
|
15,0
|
12,5
|
30,0
|
25,0
|
17,0
|
12,5
|
25,0
|
18,0
|
|
|
M 45
|
15,0
|
12,5
|
30,0
|
25,0
|
17,0
|
12,5
|
25,0
|
18,0
|
|
|
M 48
|
15,0
|
12,5
|
30,0
|
25,0
|
17,0
|
12,5
|
25,0
|
18,0
|
|
TP 17
|
M 42
|
20,0
|
13,0
|
40,0
|
26,0
|
18,0
|
13,0
|
27,0
|
19,0
|
|
|
M 45
|
25,0
|
17,0
|
50,0
|
34,0
|
23,5
|
17,0
|
35,0
|
25,0
|
|
|
M 48
|
25,0
|
17,0
|
50,0
|
34,0
|
23,5
|
17,0
|
35,0
|
25,0
|
|
|
M 56
|
25,0
|
18,0
|
50,0
|
36,0
|
25,0
|
18,0
|
37,5
|
26,5
|
|
TP 20
|
M 64
|
25,0
|
20,0
|
50,0
|
40,0
|
28,0
|
20,0
|
42,5
|
30,0
|
|
TP 28
|
M 64
|
32,5
|
28,0
|
65,0
|
56,0
|
38,0
|
28,0
|
58,0
|
42,0
|
|
|
M 72
|
32,5
|
28,0
|
65,0
|
56,0
|
39,0
|
28,0
|
58,0
|
42,0
|
|
|
M 80
|
32,5
|
28,0
|
65,0
|
56,0
|
39,0
|
28,0
|
58,0
|
42,0
|
|
TP 35
|
M 72
|
50,0
|
35,0
|
100,0
|
70,0
|
49,5
|
35,0
|
74,2
|
52,5
|
|
M 80
|
50,0
|
35,0
|
100,0
|
70,0
|
49,5
|
35,0
|
74,2
|
52,5
|
|
|
|
M 90
|
50,0
|
35,0
|
100,0
|
70,0
|
49,5
|
35,0
|
74,2
|
52,5
|
|
TP 40
|
M 72
|
60,0
|
40,0
|
120,0
|
80,0
|
56,6
|
40,0
|
84,9
|
60,0
|
|
TP 48
|
M 80
|
60,0
|
48,0
|
120,0
|
96,0
|
67,9 |
48,0
|
102,0
|
72,0
|
|
TP 50
|
M 90
|
60,0
|
50,0
|
120,0
|
100,0
|
70,7
|
50,0
|
106,0
|
75,0
|
|
|
M 100
|
60,0
|
50,0
|
120,0
|
100,0
|
70,7
|
50,0
|
106,0
|
75,0
|
