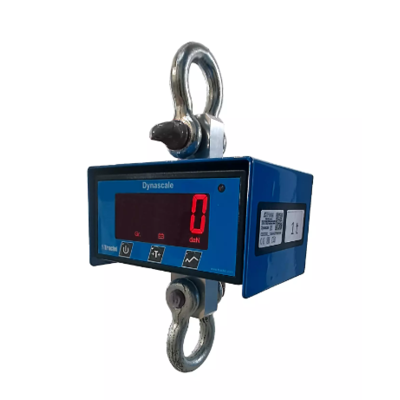

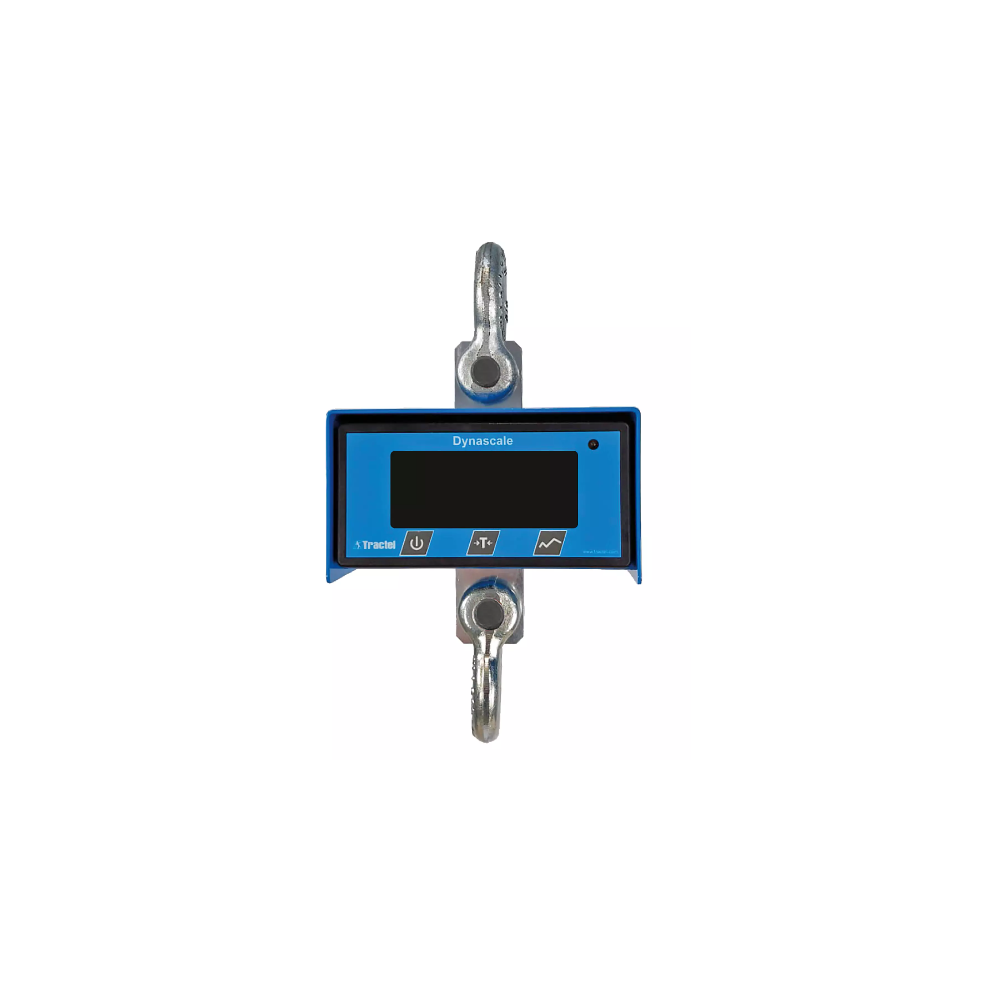

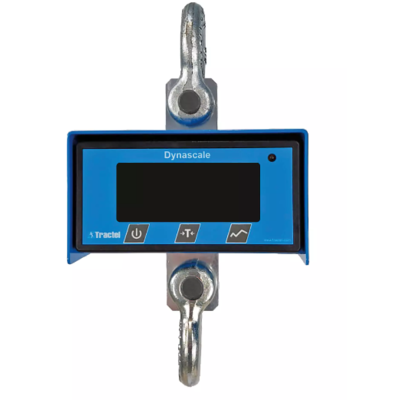

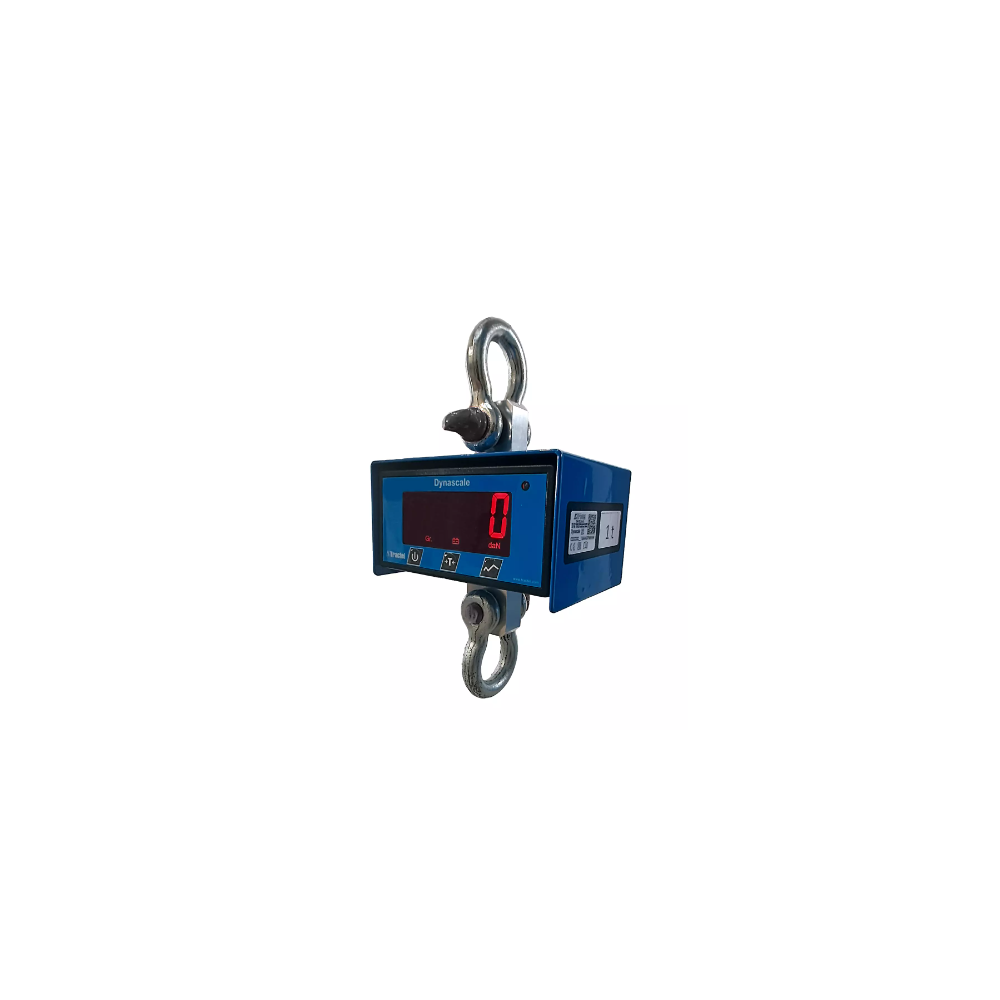

Featuring an integrated display, the Dynascale series of weighing hook provides great visibility, with an accuracy of 0.5%. Available with two shackles as standard, or with hook on option.
Specifications:
- Capacity range from 1t up to 12.5t
- LCD display of 5-digit of 30mm height
- 0.5% accuracy of full scale
- Automatic stop set at 20 min (can be delete in option)
- Multiple integrated functions (ON, Tare, Peak Hold, Units change)
- Units (kg, lbs, daN)
- IP54
- Replaces the previous MWX in our range
Functionalities:
- The Dynascale is a complete autonomous digital crane scale with integrated functions:
- On/Off
- Tare
- Peak hold
- Units change (kg, daN, lbs)
- Automatic zeroing
- Automatic stop without load or variation (20 min). Removal of automatic stop available as option
- Infrared remote control (Off, Tare, Peak hold, Units change)
- Material: Steel, aluminium
- Temperature range: -20°C up to +50°C
- Note: Minimum load 10% of WLL
- Safety factor: 4:1
| Model | Dynascale 1t | Dynascale 3.2t | Dynascale 6.5t | Dynascale 12.5t |
| IP Protection | IP 54 | |||
| Precision | +/- 0.5% at 21°C full scale | |||
| Precision | +/- 5 kg | +/- 16 kg | +/- 32.5 kg | +/- 62.5 kg |
| Sample rate | 3 Hz – 32 Hz in “Peak Hold Mode” | |||
| Resolution | 1 kg | 2 kg | 5 kg | 10 kg |
| Units | kg / daN / lbs | |||
| Battery life | 50 h | |||
