General: Swivel eye bolt with screw, to be screwed with appropriate spanner.

  • Material: Alloy steel 8.8.
  • Marking: Marked with WLL, sizes, steel quality, CE, producername, tracability.
  • Finish: Red painted.
  • Note: Approved for lifting.
  • Safety factor: 4:1.
801 illu

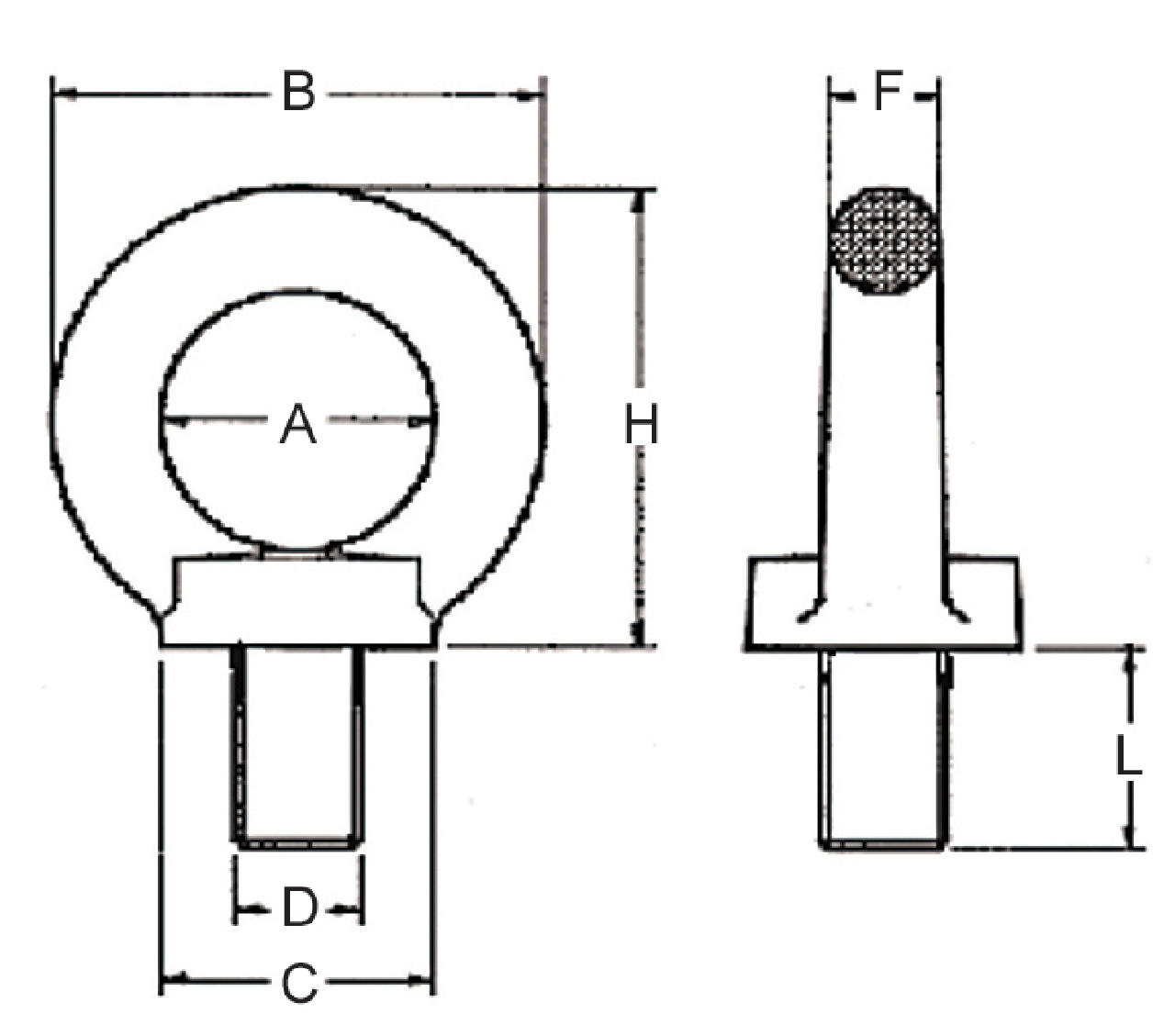

801 dwg
Part Code WLL
ton
Thread D L
mm
A
mm
B
mm
C
mm
E
mm
H
mm
Weight
kg
CAD
11.40C80106 0.4 M6 15 25 45 25 10 45 0.09
11.40C80108 0.8 M8 15 25 45 25 10 45 0.09
11.40C80110 1 M10 16 25 45 25 10 45 0.11
11.40C80112 1.6 M12 22 35 63 35 14 62 0.27
11.40C80114 3 M14 20 35 63 35 14 62 0.29
11.40C80116 4 M16 29 35 63 35 14 62 0.31
11.40C80120 6 M20 32 50 90 50 20 90 0.88
11.40C80124 8 M24 40 50 90 50 20 90 0.9
11.40C80130 12 M30 45 60 108 65 24 109 1.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download






90°
90°
0°-45°
45°-60°
0°-45°
45°-60°

WLL tons


WLL t




Size
Single leg
2 legs
Single leg
2 legs
2 legs

3 or 4 legs

M6X15
0,4
0,8
0,1
0,2
0,14
0,1
0,2
0,14
M8X15
0,8
1,6
0,2
0,4
0,28
0,2
0,4
0,28
M10X16
1,0
2,0
0,25
0,5
0,35
0,25
0,5
0,35
M12X22
1,6
3,2
0,4
0,8
0,56
0,4
0,8
0,56
M14X20
3,0
6,0
0,75
1,5
1,0
0,75
1,5
1,0
M16X29
4,0
8,0
1,0
2,0
1,4
1,0
2,0
1,4
M20X32
6,0
12
1,5
3,0
2,1
1,5
3,0
2,1
M24X40
8,0
16
2,0
4,0
2,8
2,0
4,0
2,8
M30X45
12
24
3,0
6,0
4,2
3,0
6,0
4,2
