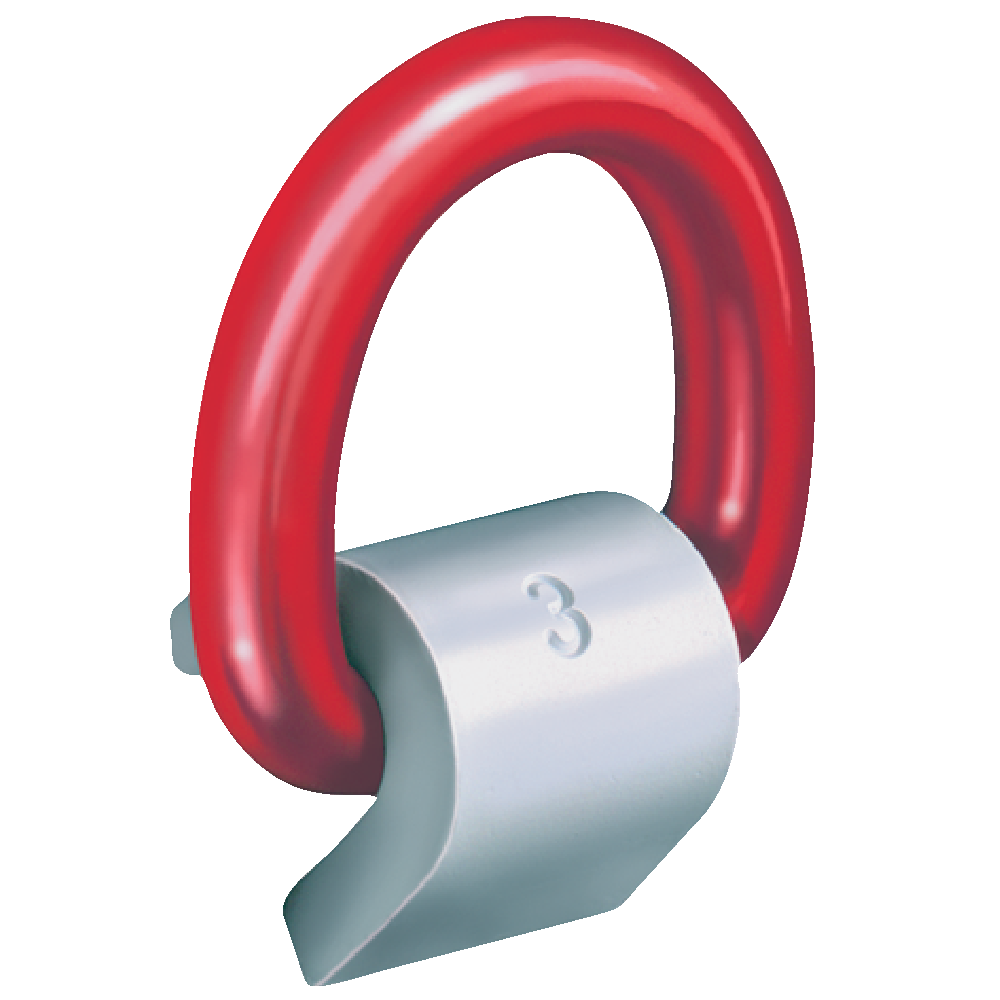

The TAPSK edge fastening is a weld-on sling point for creating lifting attachment points on machine, steelwork, or load edges. It is used where a compact welded connection and a movable D-link are required, with working load limits from 3.15 to 8 t.
Best used for:
- Welded edge attachment points on industrial loads.
- Applications needing a D-link with 270° movement.
Product benefits:
- Compact design supports installation on edge fastening points.
- D-link swings 270° for flexible load connection.
- Weld-on block in S355J2, in accordance with EN 10025.
- Four-times secured design supports controlled lifting use.
- RFID chip available for simplified identification.
- Features: 180º swing.
- Marking: CE-marked, UKCA-marked
- Finish: Red painted.
- Safety factor: 4:1
- Grade: 8
