Universal spreader beam for operation and maintenance, as well as wind turbine blade replacement. The kit consists of a 3-leg adjustable chain sling, two webbing slings of different lengths, and two round slings.

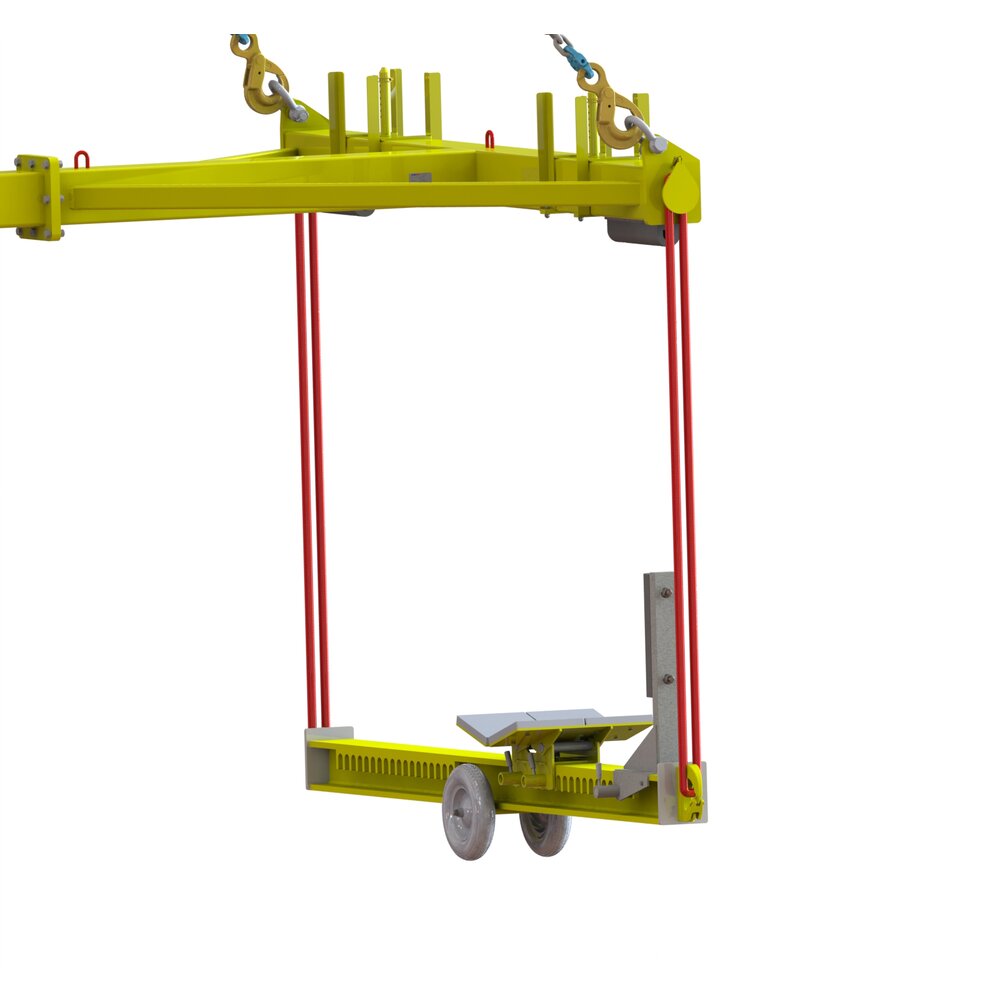

The blade surfboard features adjustable pads that protect the blades from pressure and damage. The beam has integrated lifting points for easy attachment of lifting slings.
Operation:
- Single crane lift
- Low clearance under blade
- Manual (CoG) compensation on the ground
- Load distributing blade board system
- Simple adjustable chain rig for different blade sizes
Assembly time with 2 technicians + a crane: 1 hour.
- Marking: According to standard
- Temperature range: -20°C up to +50°C
- Standard: EN 13155
- Note: 3D available on request
