The WLL stated in the table is based on a maximum top swing angle of 90°.
*K models are designed to fit in the side direction of a truck.

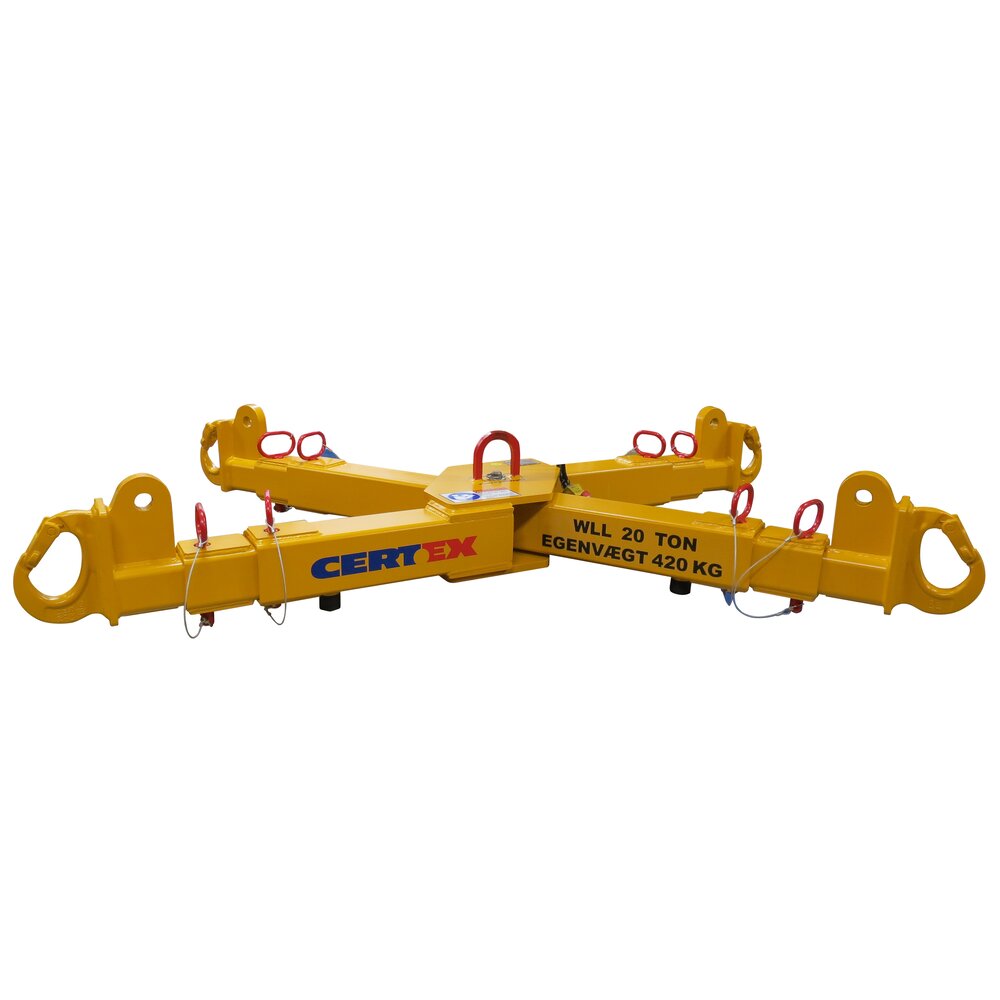

This type of lifting beam is designed as a folding crossbeam. The lifting beam is designed with a double pullout per arm, allowing the attachment points to be adjusted in the length/width. A 4-part sling must be used between the lifting beam and the crane hook. Other lengths and working loads can be manufactured upon request.
Design: Lightweight welded beam construction providing good torsional stiffness. TRIPLEX model K is special designed to fit in the side direction of a truck.
Test load: 1.5 x WLL
- Material: Beam and plate of high-strength structural steel.
- Marking: CE-marked, Working load limit (WLL), manufacturer, serial number, year of manufacturing, etc.
- Finish: Yellow painted. Other treatments available on request.
- Note: Top sling, separate slings and other accessories to be ordered separately.
62056520004500 (WLL 20 tons) can also be rented from us
