Galvaniseret sikkerhedslås

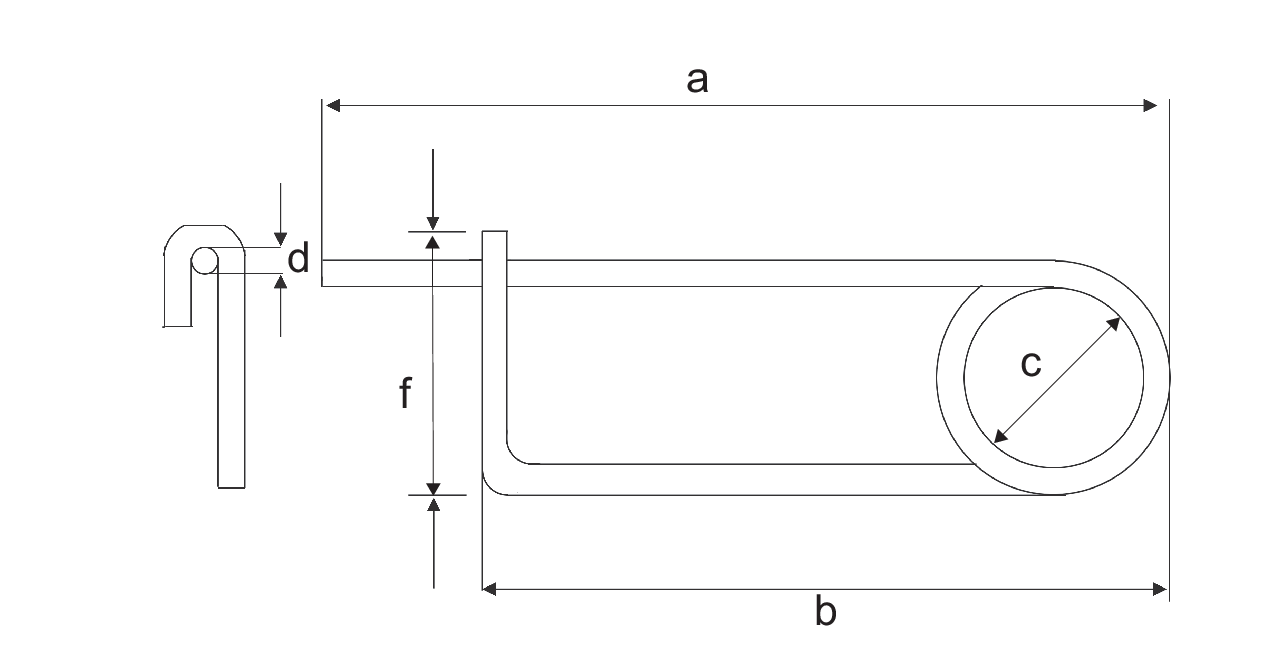

sikkerhedslås tegn
Part Code Diameter
mm
D
mm
A
mm
B
mm
C
mm
F
mm
Weight
kg
CAD
11.56520103 3 3 100 102 20 31 1.9
11.56520104 4 4 140 133 21 39 3.9
11.56520105 5 5 180 180 36 53 8.3
11.56520106 6 6 190 180 38 58 13.1

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
