Theipa

General: The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not in use. Furthermore it has a ball beared sviwel which makes the lifting eye to always stand in the correct direction to the load.

The advantages:

  • The stamped WLL applies to the kind of attachment by 90°.
  • Bolts of the quality class 10.9 crack-tested are permitted as connecting elements
  • Different threaded versions and lengths can be supplied on request.
  • Material: Eye and swivel of alloy steel grade 10.
  • Marking: WLL.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10

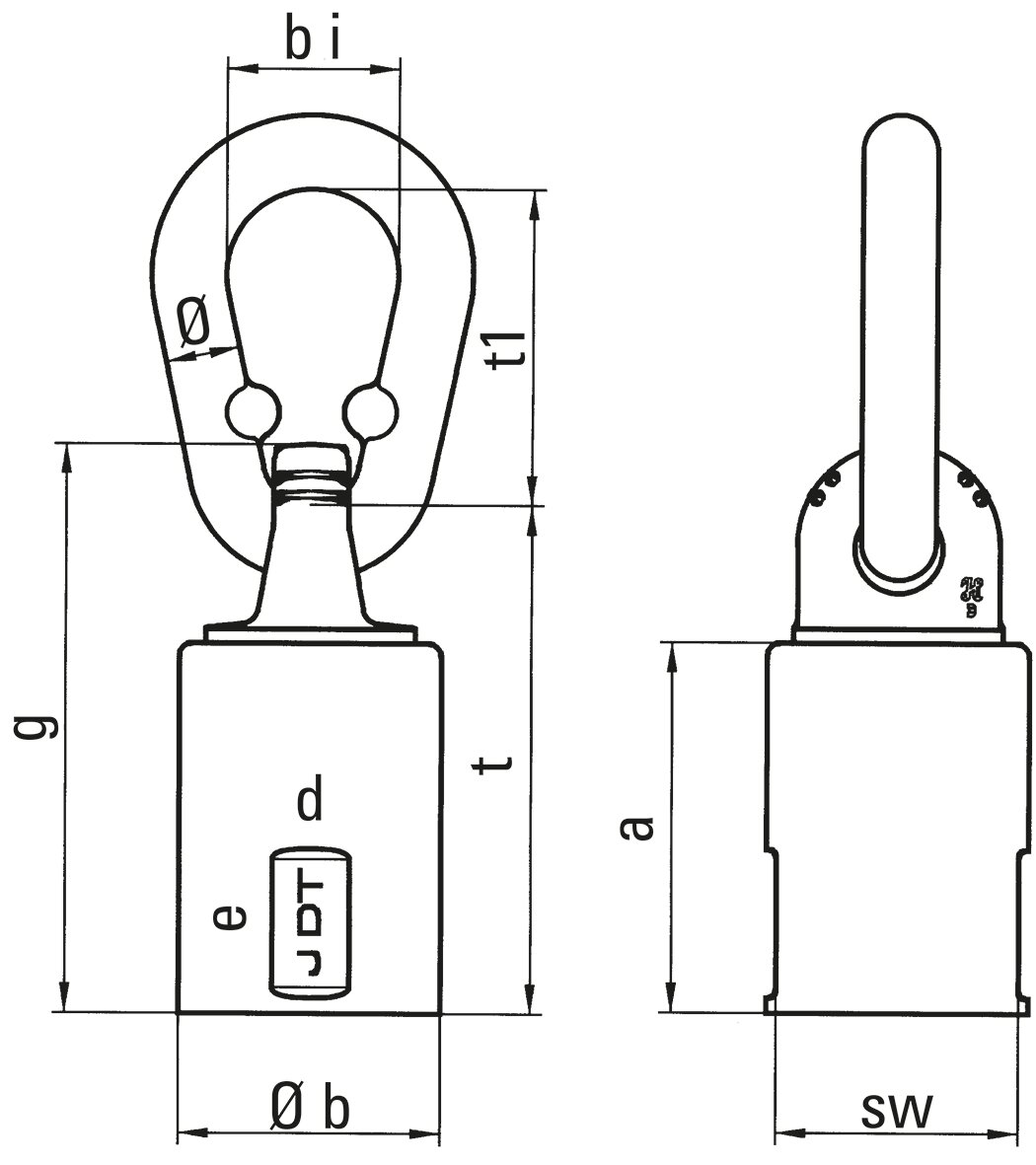

Theipa Point - F_dwg
Art No Code WLL straight lift (ton) Thread version d x e (mm) Tightening torque
Nm
Pitch DIN 13 SW width across flats (mm) Link Ø x t1 x b1i A (mm) Ø b (mm) g t (mm) Weight
kg
CAD
11.420381800000 TP-F 0,5 1.4 M 12x15 15-40 1,75 34 13x55x32 45 36,5 73 66 0.61
11.420381801000 TP-F 1 2.8 M 16x20 45-130 2 34 13x55x32 52 36,5 80 73 0.65
11.420381802000 TP-F 1,7 5 M 20x25 100-170 2,5 46 16x70x34 66 52 106 95 1.5
11.420381804000 TP-F 2,1 8 M 24x30 190-280 3 50 18x85x45 80 57 120 108 2.15
11.420381806000 TP-F 3,2 12 M 30x40 230-400 3,5 65 20x85x45 94 70 148 131 3.7
11.420381808000 TP-F 5 15 M 36x45 270-600 4 75 23x115x6 107 80 164 145 5.75

Download CAD

Description

Get CAD
Download

Load diagram

Kind of attachment




Number of legs
1
1
2
2
2

3+4
3+4
Angle of inclination
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
Code
WLL








tons







TP-F 0,5
1,4
0,5
2,8
1,0
0,7
0,5
1,0
0,75
TP-F 1
2,8
1,0
5,6
2,0
1,4
1,0
2,12
1,5
TP-F 1,7
5,0
1,7
10,0
3,4
2,4
1,7
3,55
2,5
TP-F 2,1
8,0
2,1
16,0
4,0
2,8
2,1
4,25
3,15
TP-F 3,2
12,0
3,2
24,0
6,4
4,25
3,15
6,7
4,75
TP-F 5
15,0
5,0
30,0
10,0
6,7
5,0
10,0
7,5
In case of an unsymmetrical load distribution, the lifting capacities applicable to the 2- and 3-/4-leg slings are the same as for 1-leg types at 90°.
