Typical applications: Weld-on lifting device for edgy surfaces.



  • Features: 180º swing.
  • Material: Grade 80.
  • Finish: Red painted.
  • Safety factor: 4:1
TAPSK illu

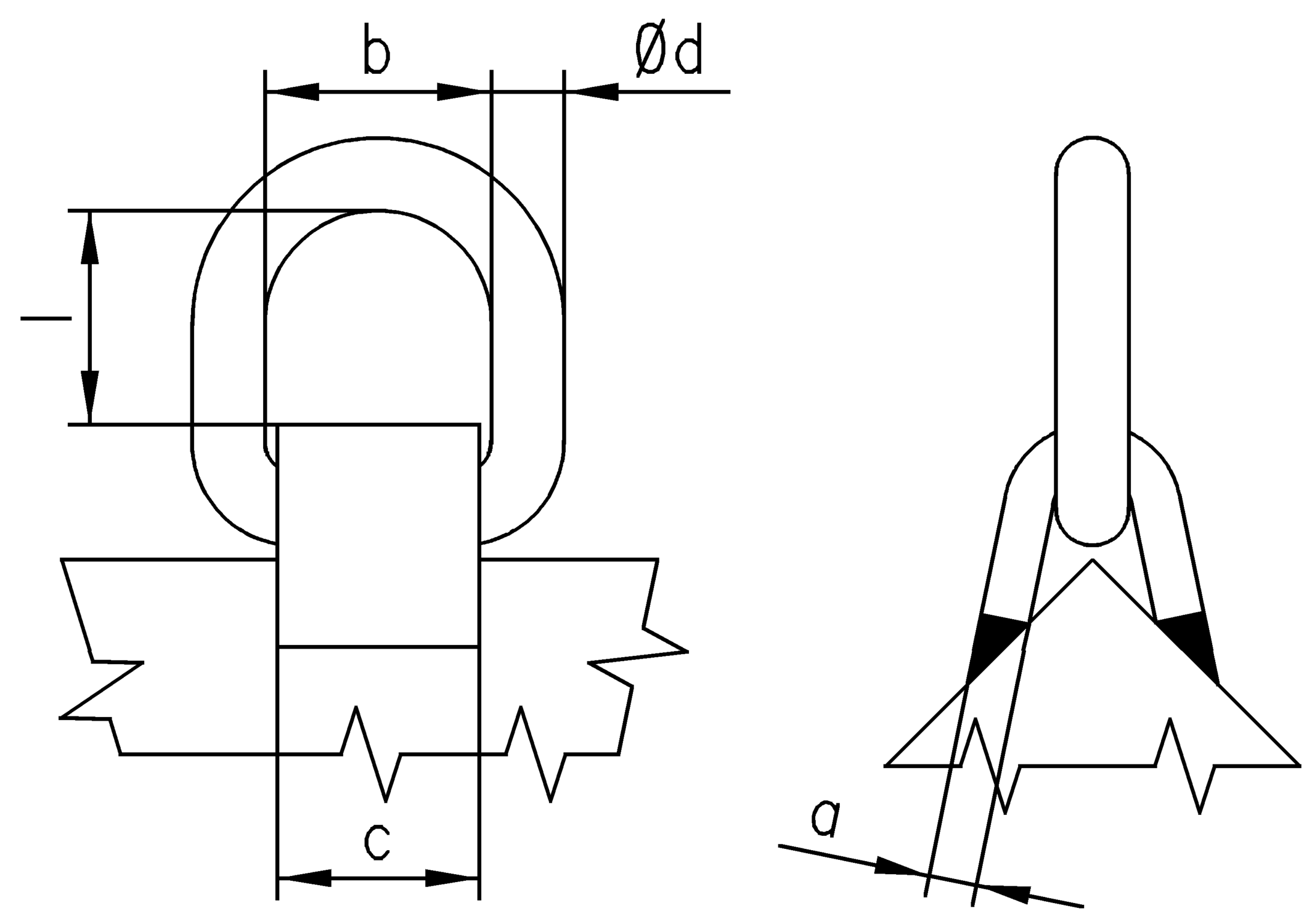

TAPSK dwg
Part Code WLL
ton
Type A
mm
B
mm
C
mm
D
mm
l
mm
Weight
kg
CAD
11.41380703100 3.15 TAPSK 3 12 56 50 18 53 1.01
11.41380705100 5.3 TAPSK 5 15 67 60 22 63 1.84
11.41380708100 8 TAPSK 8 20 80 70 26 68 3.14

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Kind of attachment






Number of lifting points
1
2
2

3 or 4

Angle of inclination
0°-45°
45°-60°
0°-45°
45°-60°
Type
WLL tons
WLL t
WLL t
WLL t
WLL t

TAPSK 3
3,15
6,3
4,25
3,15
6,3
4,75
TAPSK 5
5,3
10,6
7,1
5,3
11,2
8,0
TAPSK 8
8
16
11,2
8,0
16
12
