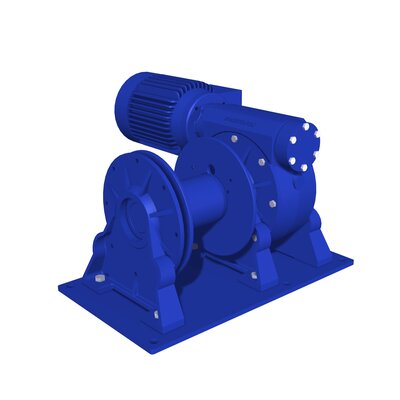

A range of electric self-braking wormgear winches developed for heavy dutypulling and traversing duties up to 2,800 kg. Due to the self-braking wormgears the winches are suitable for pulling up a slope. A brake is available as an option for accurate positioning or repetitive lifting applications up to 2.000 kg.
- IP 54 400 VAC/ 3 phases / 50 Hz non-braked motor
- Steel drum (not grooved) with cable fixing point at flange
- Single drum support (MCW 250, MCW 500)
- Two drum supports (all other models)
- Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
- FEM/ISO Class: T2-L2-M2
Options:
- Braked motor (aluminium or cast iron)
- IP 56 TENV cast iron motor for marine applications
- 220 single-phase motors (up to MCW 750)
- 24 VDC motors
- Explosion proof motors
- Protective steel motor cover
- Manual or remotely controlled disengaging clutch
- Band brakes
- Grooved drum - Drum press roller
- Alternative Speeds
- Alternative drum dimensions / split drums/ additional rope anchors / etc.
- Drum Guards
- Emergency Cranking
- Marine / offshore coating systems
Control options:
- IP 65 direct pendant remote control with emergency stop (up to 1.5kW 220 V AC / 1 phase or 2.2kW 400 V AC / 3 phase)
- IP 55 control box with low-voltage IP 65 remote control built acc. to NEN 1010
- Load limiter
- Frequency inverter for variable speed control
- wireless radio control systems
- Limit switches
- Slack wire switches
- Features: Self breaking wormgear transmission
Technical information
Winch type | Motor power | Motor power |
400v | 230 V1 phase | |
kW S2 | kW S2 | |
MCW 250 | 0.75 | |
MCW 500 | 1.1 | |
MCW 750 | 1.5 | |
MCW 1200 | 2.2 | |
MCW 1700 | 4 | |
MCW 2200 | 5.5 | |
MCW 2800 | 7.5 | |
| MCW 250 SPH | 0.75 | |
| MCW 500 SPH | 1.5 | |
| MCW 750 SPH | 1.8 |
