Technical description lashing products
A lot has happened in load securing, both in terms of lashing equipment and ways to calculate the load lashing need.
What should the load securing be able to withstand
Check in accordance with current regulations what is required to obtain approved load securing. Also note that if the load changes between means of transportation before arrival (boat, train, road), it must be taken into account that all different requirements are met, this applies both on the trailer and in e.g a container.

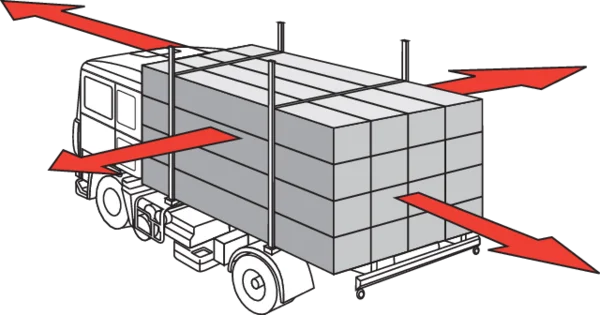

The load securing device must (during road transport) be able to withstand:
- 0,8 x the load weight forward and
- 0,5 x the load weight in the lateral direction and
- 0,5 x the load weight against the direction of travel and
- If there is a risk of tipping over
CERTEX Danmark's POWERTEX lashings with a lashing capacity of 400 kg and up are manufactured and marked to be able to be used in accordance with the above requirements.
| Abbreviation | Meaning | Description |
|---|---|---|
| LC | Lashing Capacity | Lashing capacity according to EN 12195 |
| STF * | Standard Tension Force | Tension force in the lashing at 50 daN ** in the ratchet handle |
| BL, (S) BL | Breaking Load | Breaking Load |
| * May be missing on the smaller 25 mm wide lashings ** 1 daN ≈ 1 kp ≈ 1 kg |
Be sure to use the correct short and long part when using a split lashing. If the wrong short or long part is used, the values on the label will be incorrect.
Contact your CERTEX department if your POWERTEX lashing needs to be supplemented.
CERTEX Danmark A/S is constantly working to develop and improve our products, which is why the information about STF can vary over time, the information in the catalog is at least STF.
Web Lashing POWERTEX Trucker r-PET
- This lashing is part of Lifting Solution Group's Aspire Range™
Web Lashing POWERTEX Hobby 400
- 25 mm / LC 400 daN
Web Lashing POWERTEX Maxy
- 25 mm / LC 500 daN
Web Lashing POWERTEX Handy
- 35 mm / LC 1000 daN
Web Lashing POWERTEX Lorry
- 50 mm / LC 1700 daN
Do you have any questions?
If you have any questions, please send us a message and we will be happy to help.
Frequently asked questions about cargo securing
Common "European best practices guidelines on cargo securing for road transport" have been prepared.
An expert group created by the Directorate General for Mobility and Transport and comprising experts designated by the member States and the Industry has prepared the guidelines..
They apply as guidelines, but you must consult the relevant authorities in the countries you will be driving in to find out if there are any specific requirements in this country that you must follow.
In the EN 12195-1 standard, you will find the information you need to calculate the lashing strength.

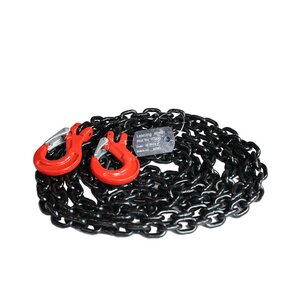

At CERTEX Danmark A/S you will find a large selection of equipment for securing your cargo, we offer web lashings with various lashing capacities, chain lashings, wheel lashings, anti-slip mats, weld-on lashing points as well as container nets and rubber tensioners.
What does the information on a lashing label mean?
There are several labels and information on a lashing label, and they are all important to know. You can read more about the meaning of these in our article "Understand the labels on your lashing"
Find equipment to secure your goods
At CERTEX Danmark A/S you will find all you need to secure your goods. If you don't find what you need, just contact us.
