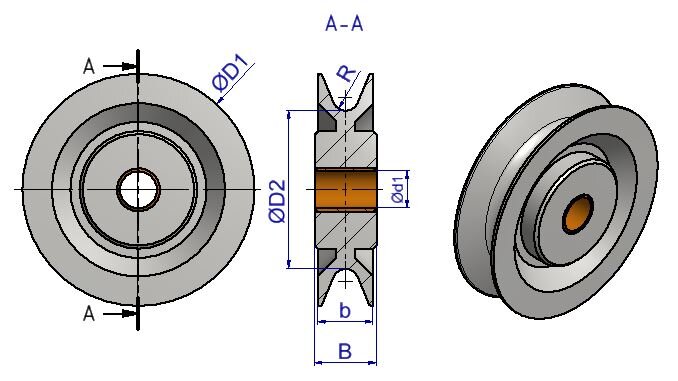

General: Wire rope sheave in maintenance-free design for manual and power operation. With plain bushing. Grooved profile turned to DIN 15061.

  • Material: S355J2.
  • Finish: Galvanized.
  • Note: Also available with ball-bearing, for higher load.
Part Code Type Max. load (ton) Wire Ø (mm) D1
mm
D2
mm
R
mm
d1 (mm) B
mm
b (mm) Weight CAD
10.35SR050 SR 050 G 0.1 2-6 50 38 3,2 10 16 12 0.1
10.35SR075 SR 075 G 0.2 3-8 75 59 4,2 12 20 18 0.3
10.35SR100 SR 100 G 0.3 4-9 100 80 4,8 16 25 21 0.6
10.35SR125 SR 125 G 0.5 6-10 125 103 5,3 16 25 21 0.9
10.35SR150 SR 150 G 0.75 8-12 150 126 6,5 20 25 22 1.4
10.35SR200 SR 200 G 1.5 6-10 200 166 5,3 30 38 32 4.5
10.35SR250 SR 250 G 2 10-12 250 213 6,5 40 41 36 7.9
10.35SR300 SR 300 G 4 12-16 300 257 8,5 50 62 40 12.8
