Hand rope winch, zinc plated.

  • Easy and safe operation.
  • Easy and space-saving mounting.
  • Corrosion resistant.
  • Turning respectively foldable crank.
  • Proven safety concept.

Optional:

  • Zinc plated/stainless: type 4210
  • Cast iron: type 421
  • Marking: According to standard
  • Standard: EN 13155
  • Note: Excl. wire (to be ordered separately).

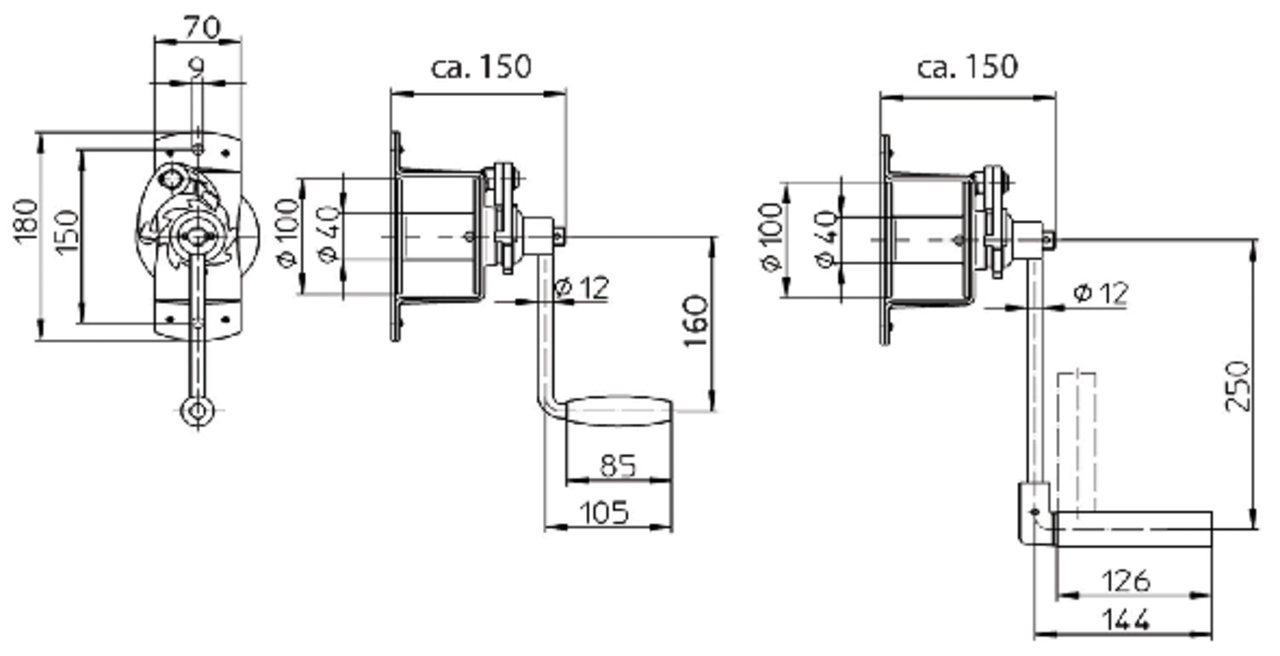

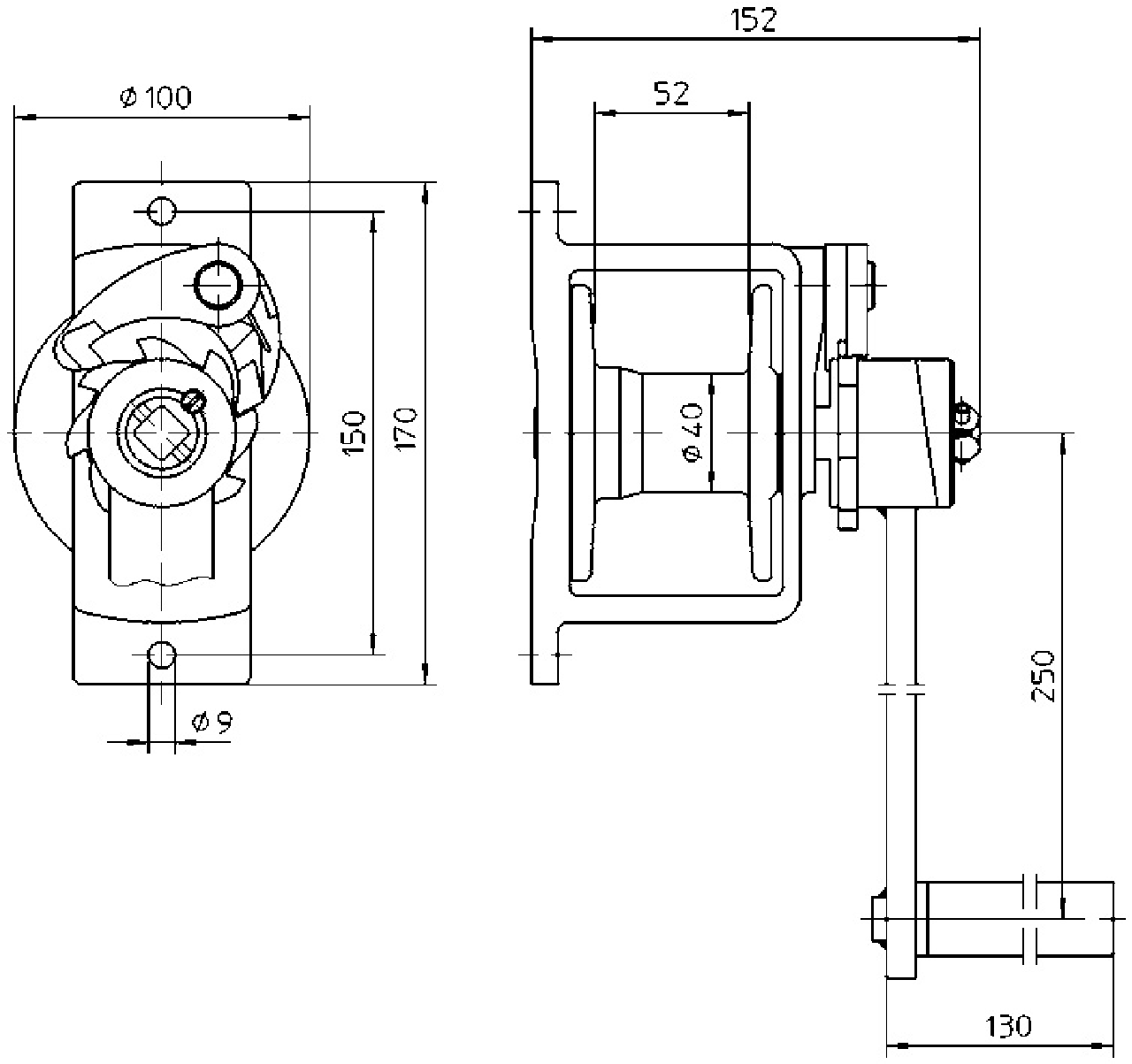

4210-421
4210-421 stainless
4210-421 streg 1 4210-421 streg 2
Part Code Crank force N Lift/crank turn
mm
Weight without rope kg WLL Lifting 1st layer kg Cap. final rope position (kg) Rope capacity (m) Wire rope Ø
mm*
CAD
16.27200044 170 135 4 125 64 15 4
16.27203717 170 135 2,5 80 40 20 3
16.27203718 170 135 2,5 125 64 15 4
16.27210712 170 135 2,5 125 64 15 4
Material for 16.27203717 and 16.27203718 - Zinc plated
Material for 16.27210712 Stainless steel
Material for 16.27200044 Cast iron
DIN 3060 FE zn K1770 sZ
*Recommended wire rope diameter. Safety factor 3:1
1st layer = inner layer
