Vertical to the I-beam.
B36

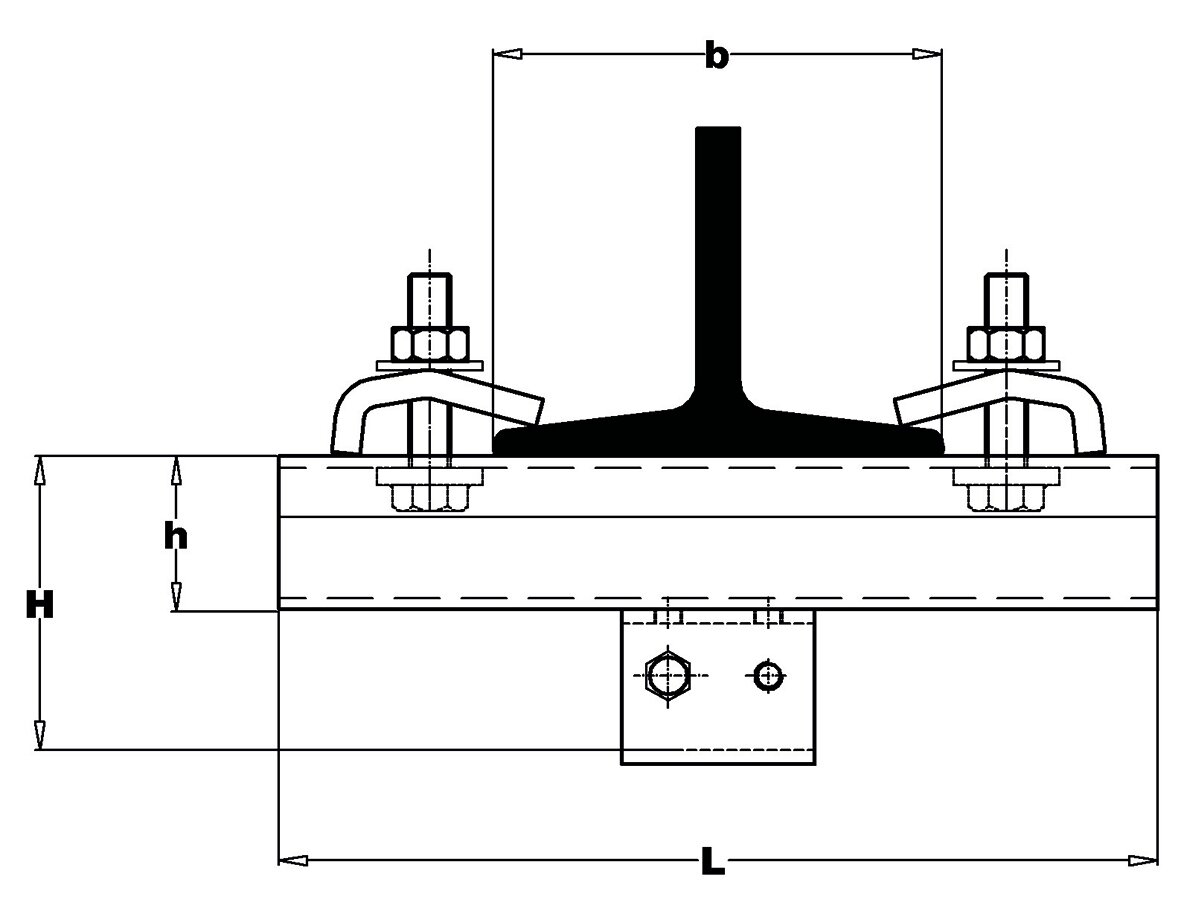

Sxedio-B36
Select a row from the table below, then click the add to quote button
Part Code Profile No. Bracket No H
mm
L
mm
B
mm
h
mm
CAD
13.0223.B36 23,000 23.B36 85 250 150 43,5
13.0224.B36 24,000 24.B36 94 250 150 43,5
13.0225.B36 25,000 25.B36 129 300 175 60
13.0226.B36 26,000 26.B36 146 300 175 60
13.0227.B36 27,000 27.B36 199 330 205 75

Download CAD
