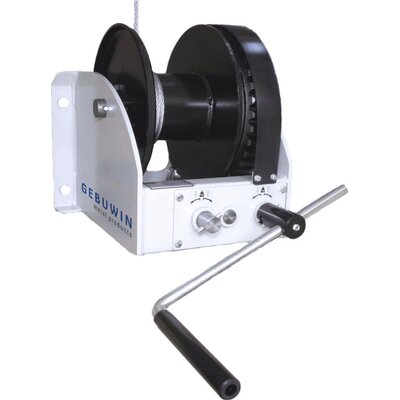

Hand operated worm gear winch WW 2000-7500. Robust and safe lifting and pulling winch, with 2 speeds.
These worm gear hand winch have a transmission that consists of a worm shaft and wheel.
Specifications:
Right angled, easy to grease worm transmission and maintenance free bearings
Cable outlet possible upward, downward and at rear.
Adjustable crank, with ergonomic grip
Load pressure brake with double ratchet system
Optional:
Zinc plated finish (6-8 micron) (EV)
ATEX certified (EX)
Grooved drum as extra option (GD)
Crank force limiter and load limiter
Double (2D) or multitiple cable drum compartments (XD)
- Marking: According to standard
- Finish: Standard paint finish (thickness is 60-80 micron in 1 layer) in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
- Standard: EN 13157
- Note: Steel or stainless steel wire ropes must be ordered separately
- Safety factor: 4:1
