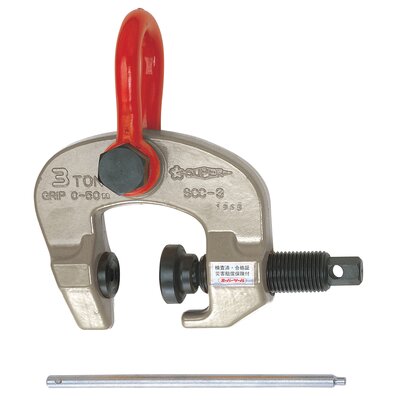

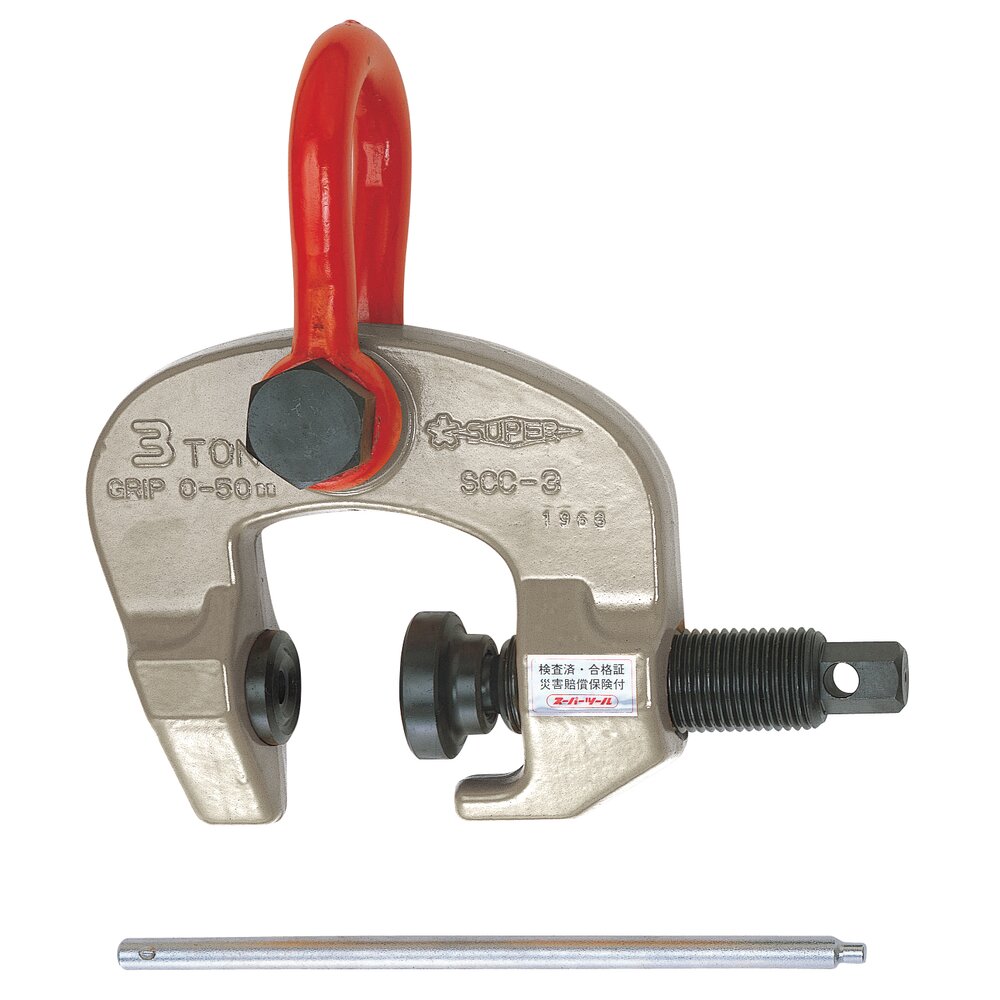

Lifting Screw Cam Clamp SUPER

Universal clamp for lifting of a large variety of different shaped steel, ranging from steel plates and structured steel to curved and spherical shaped steels.
This omni-directional clamp can lift, hang, turn over, and pull steel structures.
This clamp is equipped with a screw cam(spherical univer

Show more

0.5
  • 0.5
  • 1
  • 1.5
  • 3
  • 6
0-28
  • 0-28
Part code: 502100050281270
Part codeWLL
ton
Jaw width
mm
Weight
kg
Delivery timeBlueprintAdd to cartMore details
5021000502812700.50-280.82
Part code502100050281270
WLL
ton
0.5
Jaw width
mm
0-28
Weight
kg
0.8
Delivery time2

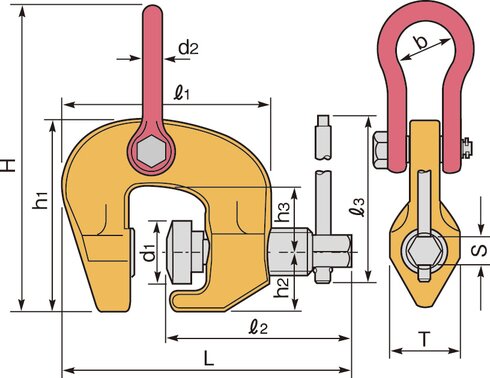

Blueprint
50210010030127010-303.22
Part code502100100301270
WLL
ton
1
Jaw width
mm
0-30
Weight
kg
3.2
Delivery time2
Blueprint
5021001503212701.50-3242
Part code502100150321270
WLL
ton
1.5
Jaw width
mm
0-32
Weight
kg
4
Delivery time2
Blueprint
50210030050127030-5062
Part code502100300501270
WLL
ton
3
Jaw width
mm
0-50
Weight
kg
6
Delivery time2
Blueprint
50210060075127060-75182
Part code502100600751270
WLL
ton
6
Jaw width
mm
0-75
Weight
kg
18
Delivery time2
Blueprint

Universal clamp for lifting of a large variety of different shaped steel, ranging from steel plates and structured steel to curved and spherical shaped steels.
This omni-directional clamp can lift, hang, turn over, and pull steel structures.
This clamp is equipped with a screw cam(spherical universal designed), which provides an extra powerful clamping force on the work piece at no load and even when vibrations occur during operation.
When the clamp is under a load, the cam will tilt in accordance with the weight of the load. This tilting of the cam will increase the clamping force and cause the teeth of the cam and pad to bite harder into the work piece.

  • Material: Special alloy steel
  • Marking: CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: -20°C up to +150°C
  • Note: Tighten the screw to the sufficient values (over 5 N m for SCC 0.3W and SCC 0.5 and over 35 N m for SCC 1 to SCC 6)
  • Safety factor: 5:1
