General: The closed spelter socket from the standard series has a wide range of applications as a steel wire rope socket for general use in any situation and under various conditions. If the minimum breaking load of the wire is not higher than that of the closed spelter socket, a 100% breaking load of the socket-wire combination is guaranteed. Non-standard sizes or custom products available on request. ISO 3189.


Working Load Limit: 20% of the MBL


Standard certification: Certificate of Conformity, 3.1 material Certificate EN 10204

  • Material: Cast steel
  • Temperature range: -40 up to +200 degrees Celsius
  • Finish: Painted or galvanized
  • Safety factor: 5:1
Product Image 1
Product Image 2

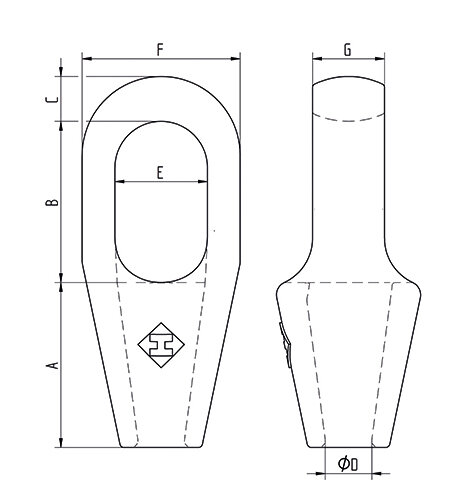

Part Code Code Finish MBL
ton
Rope dia. (inch) Rope dia (mm) A
mm
B (mm) C (mm) D
mm
E (mm) F (mm) G (mm) Weight
kg
CAD
10.10CSS290G 290 Galvanized 8 1/4 6-7 52 46 11 8 20 36,5 13 0.3
10.10CSS290P-B 290 Galvanized 8 1/4 6-7 52 46 11 8 20 36.5 13 0.3
10.10CSS292G 292 Galvanized 12 5/16 - 3/8 8-10 58 52,5 14 11 24 43 16 0.4
10.10CSS292P-B 292 Painted 12 5/16-3/8 8-10 58 52,5 14 11 24 43 16 0.4
10.10CSS294G 294 Galvanized 20 7/16 - 1/2 11-13 63,5 59 17,5 14 28,5 51 22 0.8
10.10CSS294P-B 294 Painted 20 7/16 - 1/2 11-13 63.5 59 17.5 14 28.5 51 22 0.8
10.10CSS296G 296 Galvanized 30 9/16 - 5/8 14 - 16 76,5 65 20,5 17,5 35 66,5 25,4 1.4
10.10CSS296P-B 296 Painted 30 9/16 - 5/8 14 - 16 76.5 65 20.5 17.5 35 66.5 25.4 1.4
10.10CSS298G 298 Galvanized 40 3/4 18 - 19 90 75 26 21 42 75 31 2.1
10.10CSS298P-B 298 Painted 40 3/4 18 - 19 90 75 26 21 42 75 31 2.1
10.10CSS201G 201 Galvanized 60 7/8 20 - 22 101 90 33 24 47 92 38 4
10.10CSS201P-B 201 Painted 60 7/8 20 - 22 101 90 33 24 47 92 38 4
10.10CSS204G 204 Galvanized 75 1 23 - 26 114 103 36 28 57 106 45 6
10.10CSS204P-B 204 Painted 75 1 23 - 26 114 103 36 28 57 106 45 6
10.10CSS207G 207 Galvanized 100 1 1/8 27 - 30 127 116 39 32 63 114 51 7.5
10.10CSS207P-B 207 Painted 100 1 1/8 27 - 30 127 116 39 32 63 114 51 7.5
10.10CSS212G 212 Galvanized 125 1 1/4 - 1 3/8 31 - 36 139 130 44 38 70 128 58 11
10.10CSS212P-B 212 Painted 125 1 1/4 - 1 3/8 31 - 36 139 130 44 38 70 128 58 11
10.10CSS215G 215 Galvanized 150 1 1/2 37 - 39 152 155 51 41 79 137 64 14
10.10CSS215P-B 215 Painted 150 1 1/2 37 - 39 152 155 51 41 79 137 64 14
10.10CSS217P-B 217 Painted 180 1 5/8 40 - 42 165 171 54 44 82 146 70 17.5
10.10CSS217G 217 Galvanized 180 1 5/8 40 - 42 165 171 54 44 82 146 70 17.5
10.10CSS219G 219 Galvanized 230 1 3/4 - 1 7/8 43 - 48 190 198 56 51 89 171 77 27.5
10.10CSS219P-B 219 Painted 230 1 3/4 - 1 7/8 43 - 48 190 198 56 51 89 171 77 27.5
10.10CSS222G 222 Galvanized 280 2 - 2 1/8 49 - 54 216 224 62 57 98 194 84 40
10.10CSS222P-B 222 Painted 280 2 - 2 1/8 49 - 54 216 224 62 57 98 194 84 40
10.10CSS224P-B 224 Painted 375 2 1/4 - 2 3/8 55 - 60 228 247 73 65 110 216 94 52
10.10CSS224G 224 Galvanized 375 2 1/4 - 2 3/8 55 - 60 228 247 73 65 110 216 94 52
10.10CSS226P-B 226 Painted 425 2 1/2 - 2 5/8 61 - 68 248 270 80 73 140 241 102 63
10.10CSS226G 226 Galvanized 425 2 1/2 - 2 5/8 61 - 68 248 270 80 73 140 241 102 63
10.10CSS227P-B 227 Painted 500 2 3/4 - 2 7/8 69 - 75 279 286 79 79 159 273 124 88.5
10.10CSS227G 227 Galvanized 500 2 3/4 - 2 7/8 69 - 75 279 286 79 79 159 273 124 88.5
10.10CSS228P-B 228 Painted 600 3 - 3 1/8 76 - 80 305 298 83 86 171 292 133 111
10.10CSS228G 228 Galvanized 600 3 - 3 1/8 76 - 80 305 298 83 86 171 292 133 111
10.10CSS229G 229 Galvanized 700 3 1/4 - 3 3/8 81 - 86 330 311 102 92 184 311 146 143
10.10CSS229P-B 229 Painted 700 3 1/4 - 3 3/8 81 - 86 330 311 102 92 184 311 146 143
10.10CSS230G 230 Galvanized 750 3 1/2 - 3 5/8 87 - 93 356 330 102 99 197 330 159 166
10.10CSS230P-B 230 Painted 750 3 1/2 - 3 5/8 87 - 93 356 330 102 99 197 330 159 166
10.10CSS231P-B 231 Painted 950 3 3/4 - 4 94 - 102 381 356 108 108 216 362 178 217
10.10CSS231G 231 Galvanized 950 3 3/4 - 4 94 - 102 381 356 108 108 216 362 178 217
10.10CSS233P 233 Painted 1,200 4 1/2 108 - 115 460 425 120 125 235 405 190 338
10.10CSS231G 233 Galvanized 1,200 4 1/2 108 - 115 460 425 120 125 235 405 190 338
10.10CSS240P-B 240 Painted 1,400 5 122 - 130 500 475 140 138 270 515 210 579
10.10CSS240G 240 Galvanized 1,400 5 122 - 130 500 475 140 138 270 515 210 579
10.10CSS250P-B 250 Painted 2,000 5 1/2 - 6 140 - 155 580 550 150 160 300 510 250 654
10.10CSS250G 250 Galvanized 2,000 5 1/2 - 6 140 - 155 580 550 150 160 300 510 250 654
10.10CSS260P-B 260 Painted 2,500 6 1/2 158 - 167 675 600 175 175 325 600 300 1,063
10.10CSS260G 260 Galvanized 2,500 6 1/2 158 - 167 675 600 175 175 325 600 300 1,063
