General: For tightening of ropes, cables and the like.


Standard: DIN 1480.

  • Material: Carbon steel.
  • Finish: Galvanized.

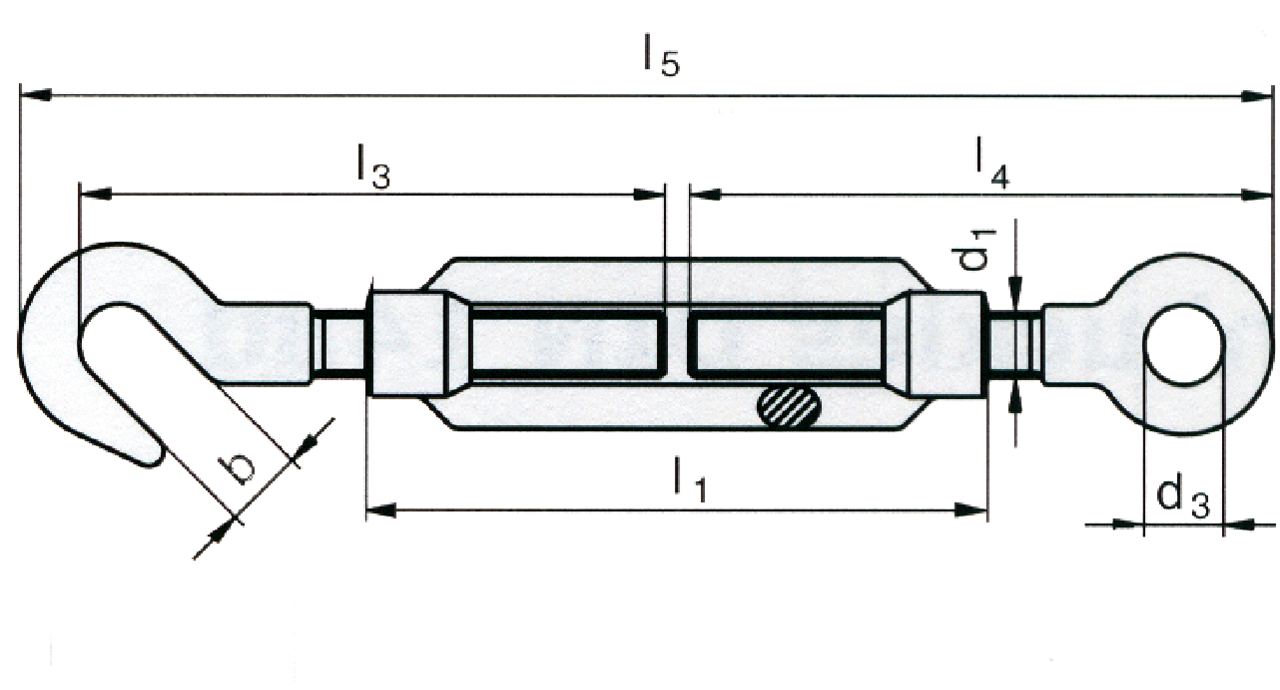

Turnbuckle DIN 1480 hook-eye
Turnbuckle DIN 1480 hook-eye
Part Code l1 mm l3 (mm) l5 (mm) ad (mm) Package l4 (mm) D1
mm
d3 (mm) B
mm
Weight
kg
CAD
11.561480JEM06 110 85 172-252 80 10 80 M6 9 8,5 9.5
11.561480JEM08 110 85 182-257 75 10 84 M8 10 11,0 16.5
11.561480JEM10 125 112 213-298 85 10 105 M10 14 13,5 29
11.561480JEM12 125 117 238-318 80 10 115 M12 16 15,5 43
11.561480JEM14 140 122 263-353 90 10 122 M14 18 18,5 62
11.561480JEM16 170 138 320-430 110 10 165 M16 22 19,0 92
11.561480JEM20 200 170 367-497 130 5 167 M20 24 20,5 163
11.561480JEM22 220 185 398-543 145 1 167 M22 27 26,0 220
11.561480JEM24 255 205 447-617 170 1 205 M24 27 26,0 300
11.561480JEM30 255 225 512-662 160 1 255 M30 31 33,0 460
11.561480JEM36 295 255 568-748 180 1 276 M36 43 44,0 768
