Snatch block intended for general lifting purposes.
Design: Snatch block type with covering side plates. Provided with swiveling hook with latch and pressure lube fittings. Furnished with bronze bushing.

  • Marking: Working load limit (WLL).
  • Finish: Painted.
  • Safety factor: 4:1.
Powertex snatch block LH type

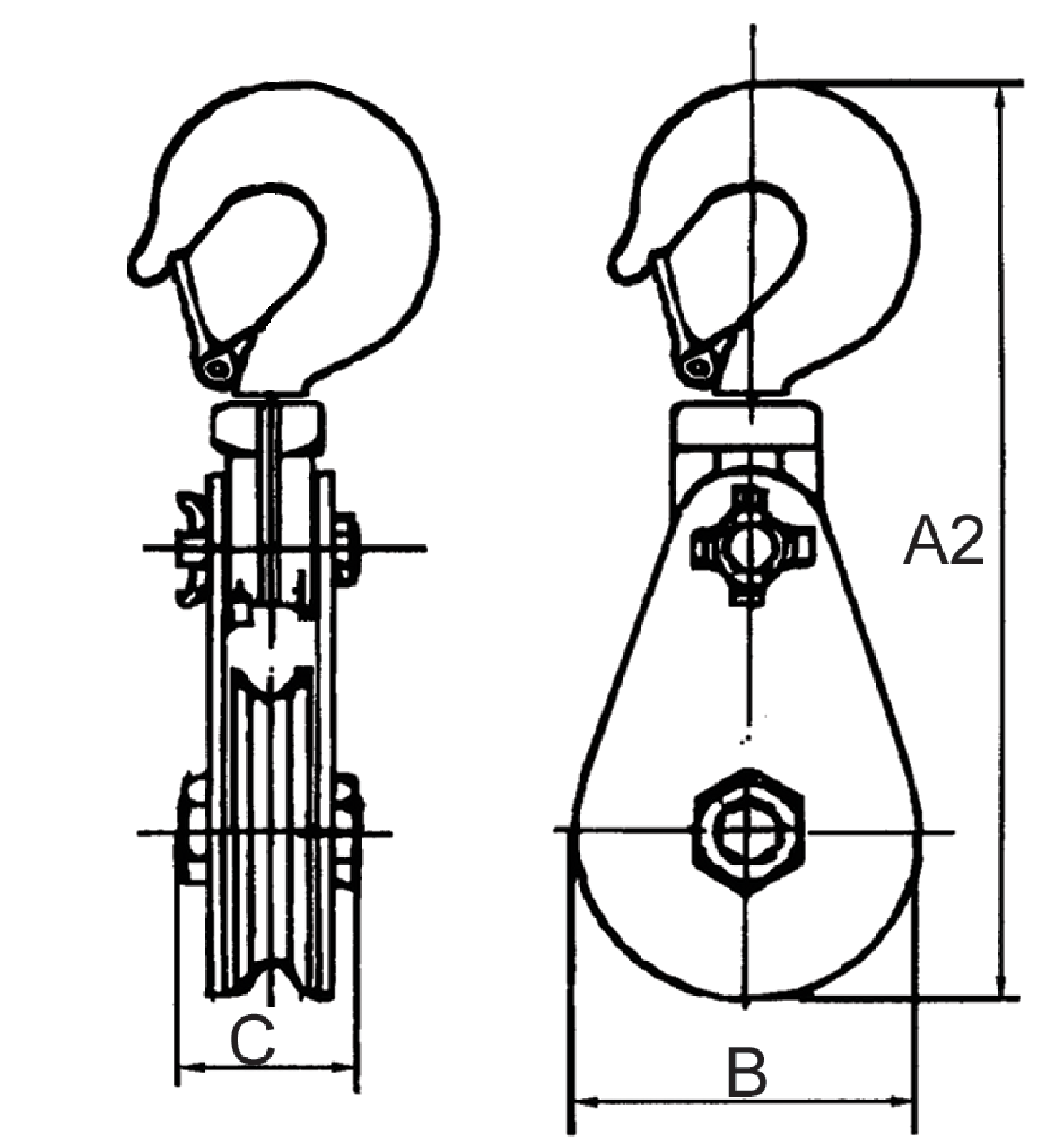

Powertes snatch block LH type drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Sheave dia
mm
A2
mm
B
mm
C
mm
Weight
kg
CAD
16.15PSBH020075 2 7-9 75 292 82 70 4
16.15PSBH040115 4 10-12 115 358 120 70 6
16.15PSBH040150 4 16-19 150 412 160 70 14
16.15PSBH080200 8 19-22 200 549 210 93 16
16.15PSBH100250 10 24-26 250 695 260 115 38
16.15PSBH120300 12 24-26 300 797 310 133 56
16.15PSBH150200 15 22-24 200 672 210 102 24
16.15PSBH150300 15 24-26 300 797 310 133 65
16.15PSBH220365 22 28-32 365 960 365 140 90
16.15PSBH300300 30 28-30 300 993 310 193 125
16.15PSBH300400 30 32-35 400 1,085 415 155 135
16.15PSBH350350 35 32-35 350 1,028 365 193 130
16.15PSBH500600 50 46-50 600 1,495 625 275 418

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
