General: Sheave block, single with swivel-eye.
  • Material: AISI 316.

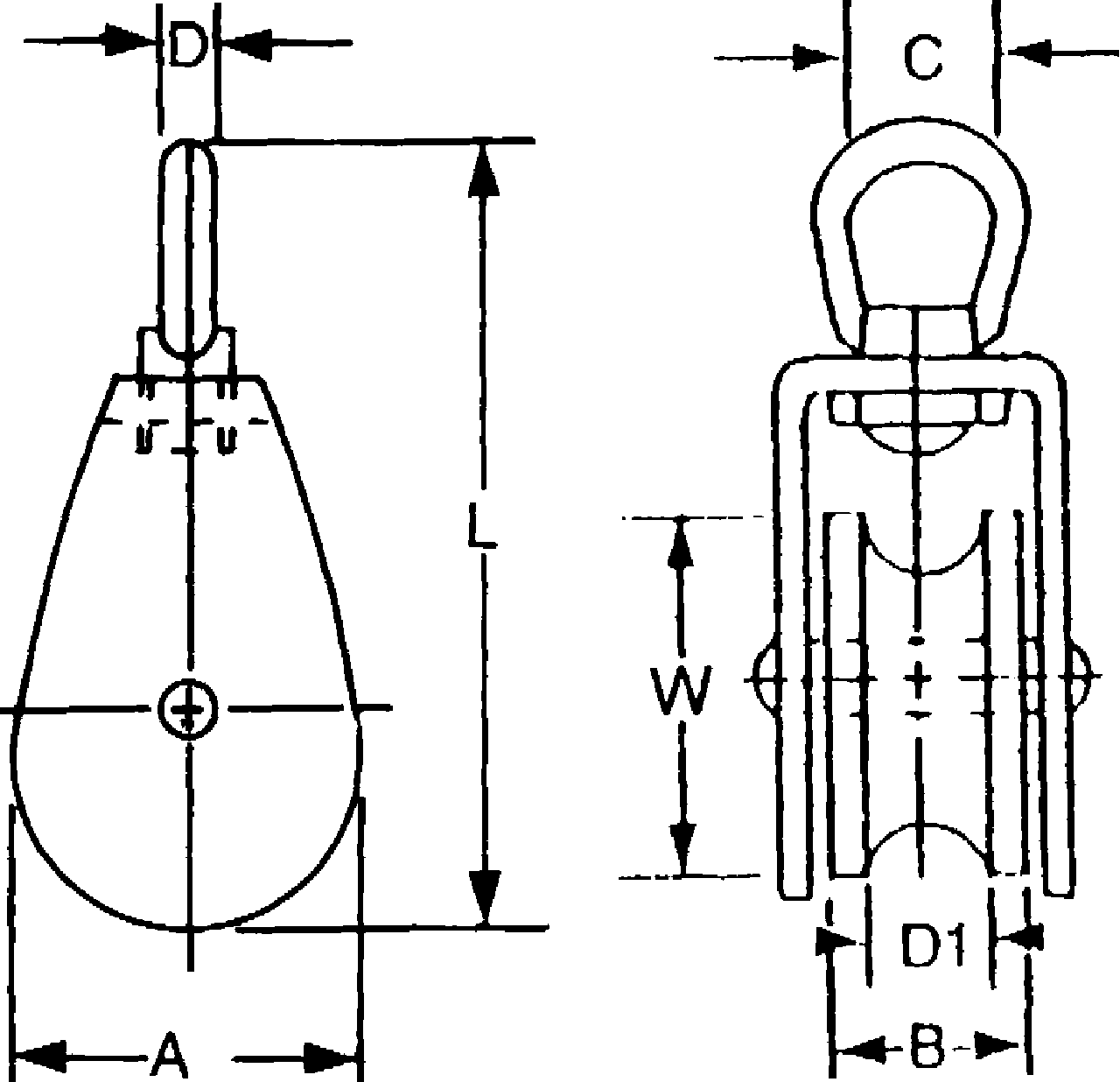

Part Code Dimensions
mm
A
mm
B
mm
C
mm
D
mm
D1
mm
L
mm
CAD
16.17BR25S 25 30 24 14 6 12 83
16.17BR32S 32 36 24 14 6 12 96
16.17BR50S 50 54 28 20 8 15 130

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
