Blue Wave

General: Stainless steel plateshackles AISI 316.



  • Material: AISI 316
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Warning: Not approved for lifting.
151010
Rustfri sjækler AISI 304 5

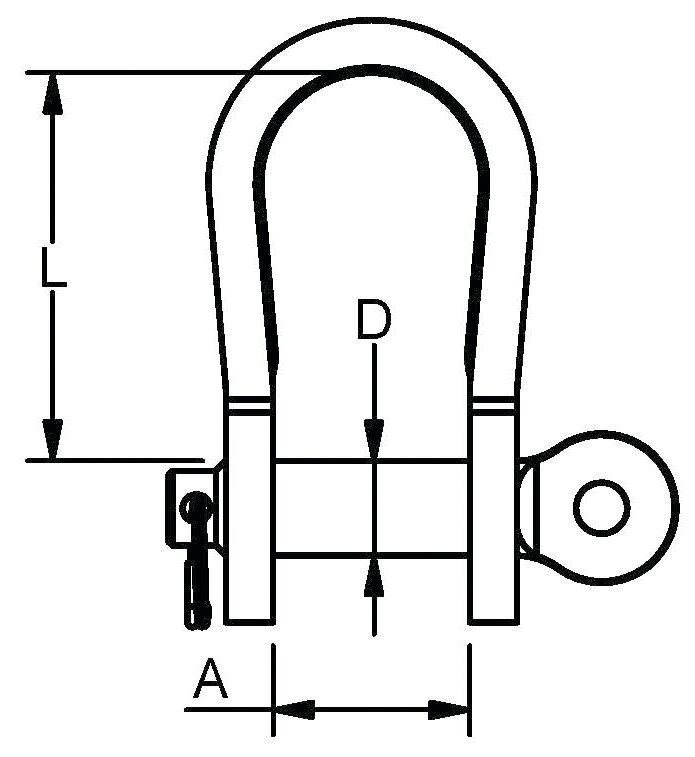

Part Code MBL
t
Pack pcs. A
mm
D
mm
L
mm
Weight
kg/100pc
CAD
11.55151010 4.8 25 21 M10 40 9
11.55151212 7 25 25 M12 50 16.5
