Terrier

General: For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong). Articulated lifting shackle. Jaw opening from 0 - 95 mm. Adjustable by steps of 30 mm.

Features:

  • Only 1 clamp needed for different kind of jobs
  • Also the same clamp can be used if a big jaw opening is necessary
  • With articulated lifting shackle for universal lifting flexiblity at various angles
  • The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees .
  • Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction.
  • Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
  • Standard with 2 pivots for extra clamping force
  • Clamp is locked in closed as well as open position
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Standard: EN 13155
  • Note: Hardness level of the material surface may not exceed 37 HRC (345 HB, 1166 N/mm2).
  • Warning: Min. load is 10% of max. WLL.

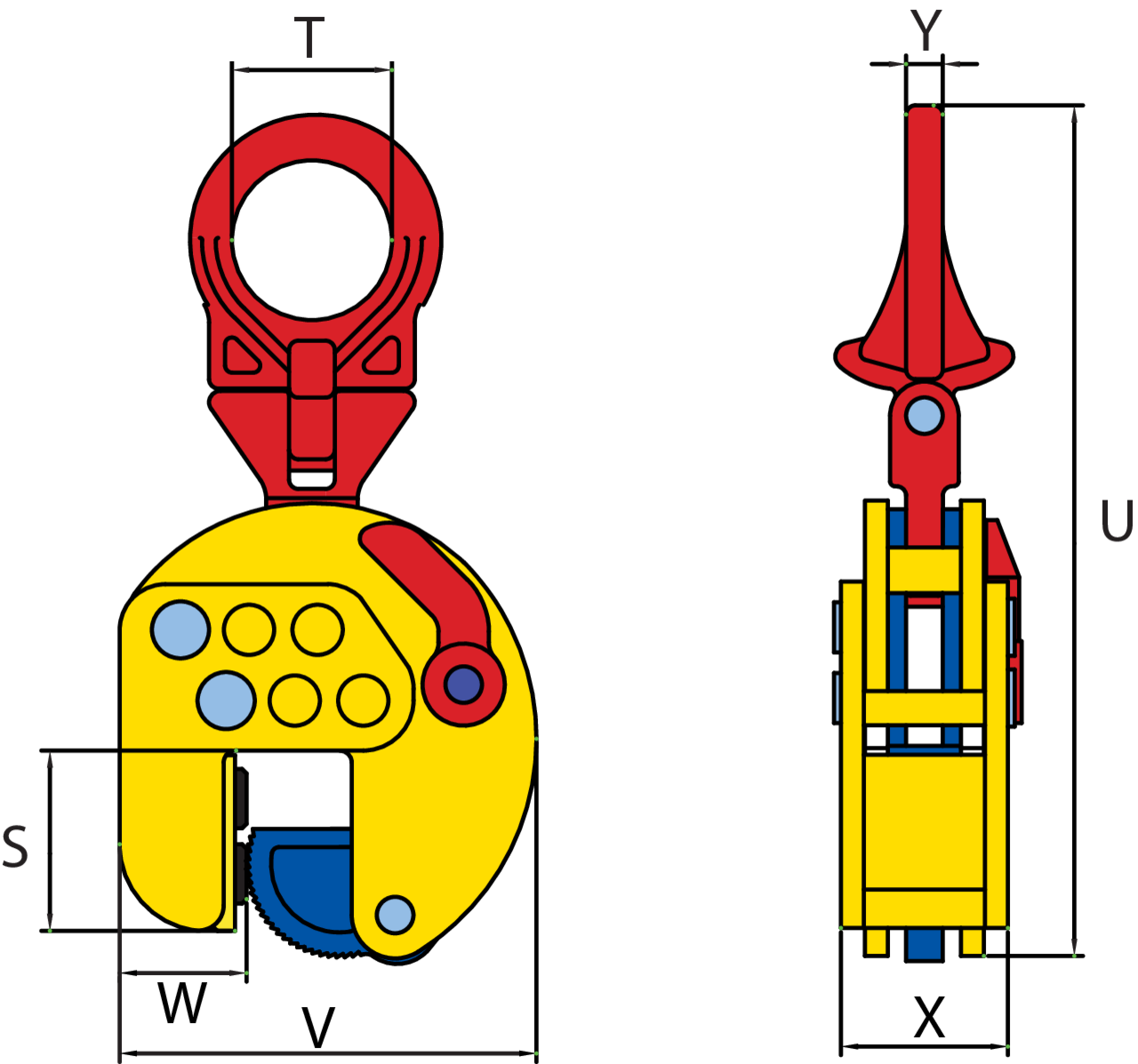

TSEU-A_m2
TSEU-A_m
Part Code Code WLL
ton
S (mm) T
mm
U (mm) V (mm) W
mm
X (mm) Y (mm) Weight
kg
CAD
16.01863300 3 TSEU-A 3 79 70 373 183-243 51 77 16 10
