Terrier

General:
Clamp for vertical lifting, transporting and turning of all steel plates and structures from all positions. With articulated lifting shackle for universal lifting flexibility at various angles.

Features:

  • The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below
  • Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when VertiCal lifting lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight, maintenance-friendly, heavy duty body
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
  • Note: Hardness level of the material surface may not exceed 37 HRC (345 HB, 1166 N/mm2).
  • Warning: Min. load is 10% of max. WLL.
TSU_HR
Part Code Code WLL
ton

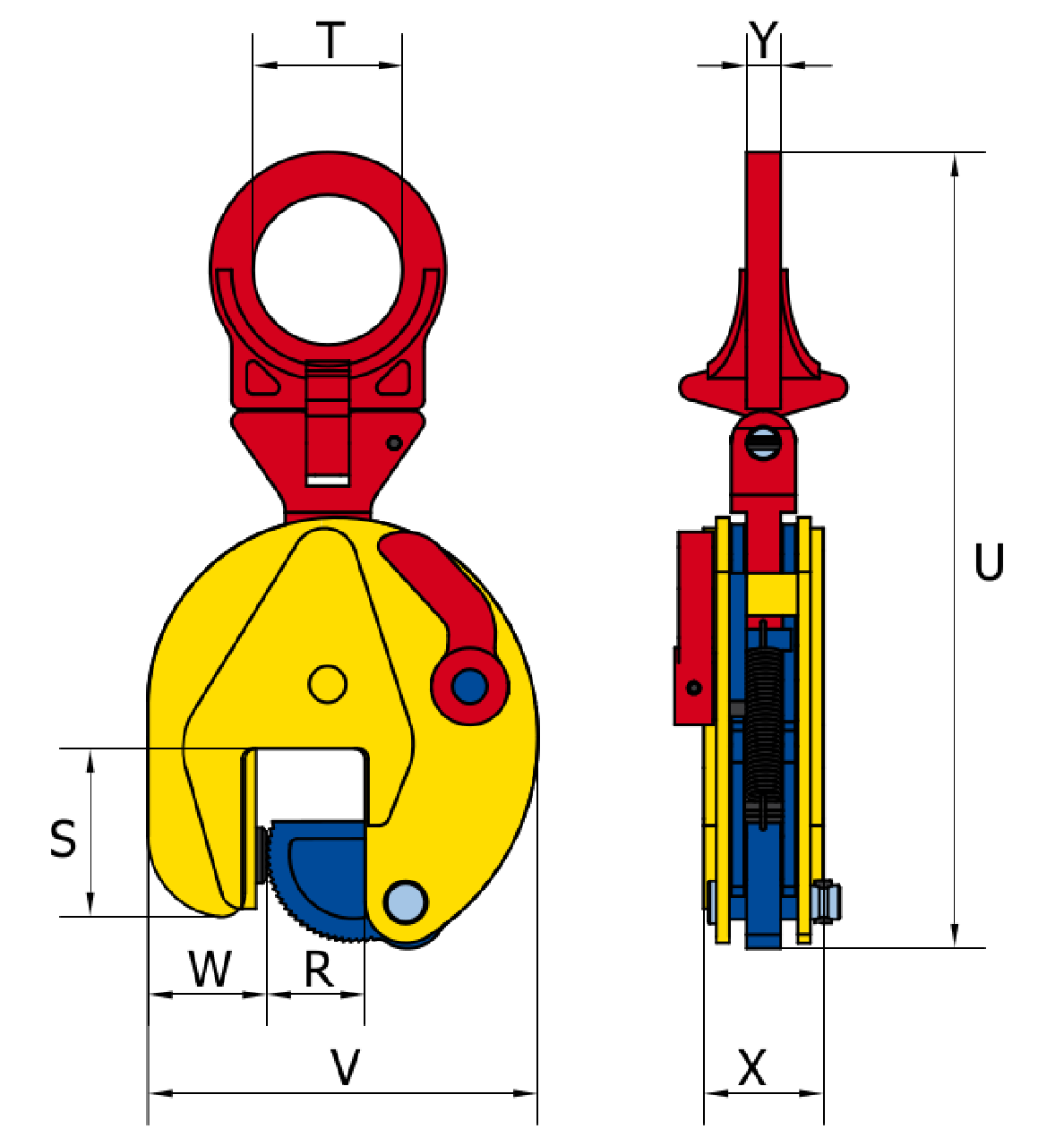

Jaw opening (mm) S (mm) T (mm) U (mm) V (mm) W (mm) X (mm) Y (mm) Weight
kg
CAD
16.01855000 0.75 TSU 0.75 0-13 47 30 203 100 37 37 10 1.8
16.01865800 1 TSEU 1 0-25 56 50 292 141 37 47 15 3.8
16.01855601 2 TSEU* 2 0-35 78 70 372 183 56 56 16 8
16.01865331 3 TSEU* 3 0-35 78 70 372 183 56 56 16 8
16.01865441 4.5 TSU 4.5 0-25 85 70 429 203 60 77 20 16
16.01865301 4.5 TSEU 4.5 0-45 85 70 431 228 60 78 20 16.5
16.01865401 6 TSU 6 0-32 114 78 528 225 78 78 32 22
16.01856200 6 STSU 6 40-90 114 78 523 275 70 78 32 24
16.01865411 6 TSEU 6 0-50 114 78 527 259 82 78 32 24
16.01865601 7.5 TSU 7.5 0-40 111 78 567 246 76 82 32 27
16.01855400 7.5 TSEU 7.5 0-55 111 78 560 267 70 86 32 28
16.01856300 7.5 STSU 7.5 50-100 111 78 560 312 70 86 32 30
16.01855405 9 TSU 9 0-55 111 78 560 267 70 86 32 29
16.01855305 9 STSU 9 50-100 111 78 560 312 70 86 32 31
16.01865901 12 TSU 12 0-52 148 85 648 295 100 94 48 41
16.01856401 12 STSU 12 50-100 152 85 644 344 100 94 48 45
16.01955150 15 TSU 15 0-76 209 85 816 373 136 106 48 73
16.01966150 15 STSU 15 80-150 224 85 808 450 136 106 48 78
16.01955170 17 TSU 17 0-76 209 85 816 373 136 106 48 74
16.01955200 20 TSU 20 0-80 250 100 948 563 153 140 71 160
16.01966200 20 STSU 20 80-150 249 100 940 640 153 140 71 171
16.01955250 25 TSU 25 5-85 250 100 948 563 148 140 71 160
16.01966250 25 STSU 25 80-150 249 100 940 640 153 140 71 171
16.01955300 30 TSU 30 10-90 250 100 944 568 153 142 71 167
16.01966300 30 STSU 30 80-150 249 100 946 645 156 142 71 176.5
* Available with a remote control
