The GKS worldwide approved transport trolleys solving your in-house heavy load standards - safe and perfect! Series F and L – the perfect 3-point moving solution for safe and simple transport. F trolleys – the rear axle of the load moving system with adjustable connecting bar to fit under heavy loads of almost any width. L trolleys – the front steering support with swivel top and tow eye to guide your loads safely. Wheels - special GKS wheels, that do not mark floors. Low rolling resistance and highest stability for numerous uses.

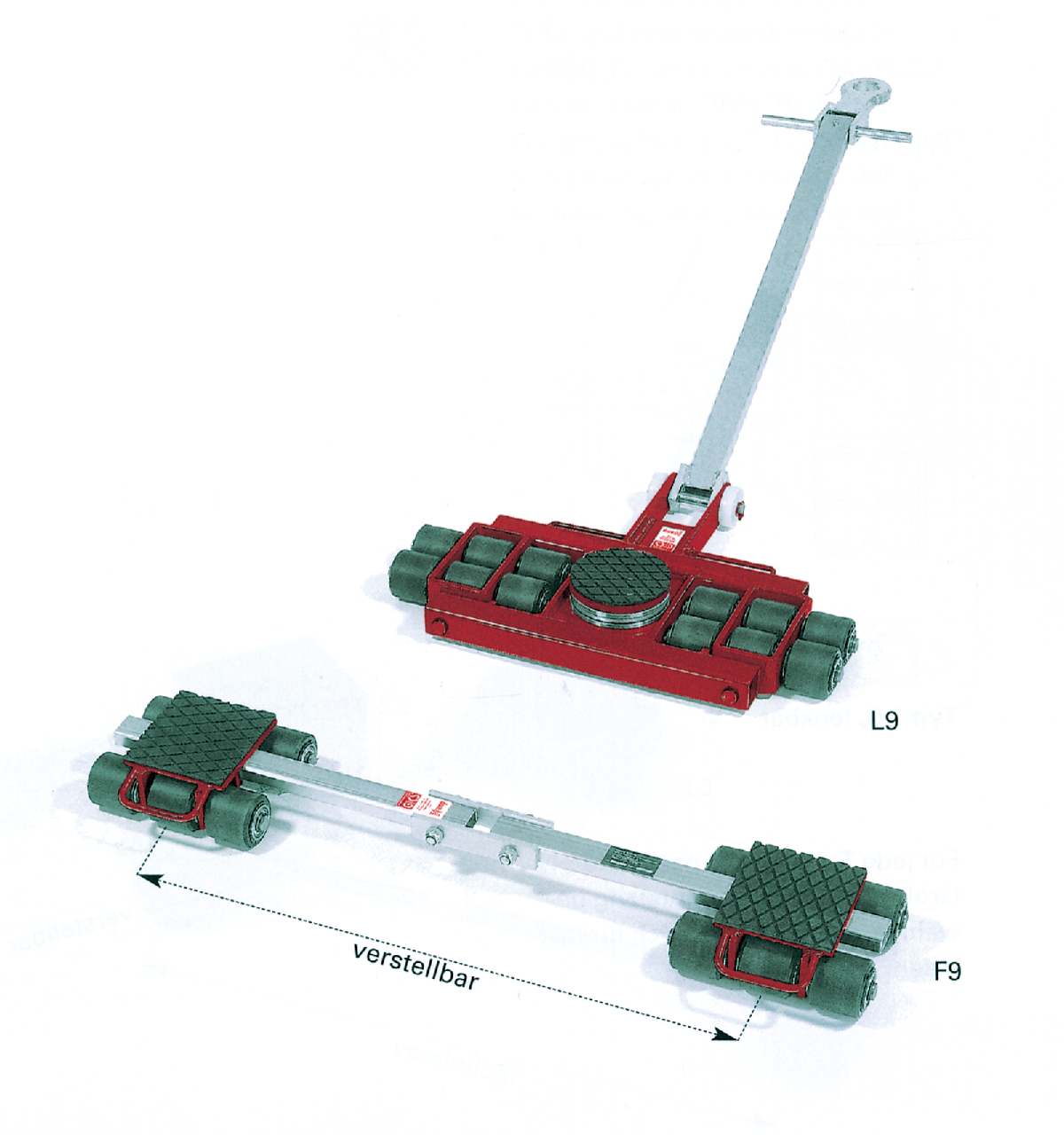

L9/F9 set:

  • Standard transport set for heavy loads up to 18tons.
  • Can be combined with Tandem trolleys TL6/TL12 or rotating trolleys RL2 / RL4 / RL6

Contact us for more possibilities! Sets available up to 120t.

Part Code Type Loading height (mm) Contact surface (mm) Single load (tons) Wheels dia (mm) l9-f9 total cap. (tons) Number of wheels adjustable (mm) Swivel plate dia. (mm) l x w (mm) Swivel plate steerable at Steering rod (mm) Weight
16.99GKSF09 Rear, stationary 110 320x200 9 85x85 18 12 840-1230 43
16.99GKSL09 Front, steerable 110 9 85x85 18 12 170 840 x 583 ca. 90° 1,080 59

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
