The GKS worldwide approved transport trolleys solving your in-house heavy load standards - safe and perfect! Series F and L – the perfect 3-point moving solution for safe and simple transport. F trolleys – the rear axle of the load moving system with adjustable connecting bar to fit under heavy loads of almost any width. L trolleys – the front steering support with swivel top and tow eye to guide your loads safely. Wheels - special GKS wheels, that do not mark floors. Low rolling resistance and highest stability for numerous uses.

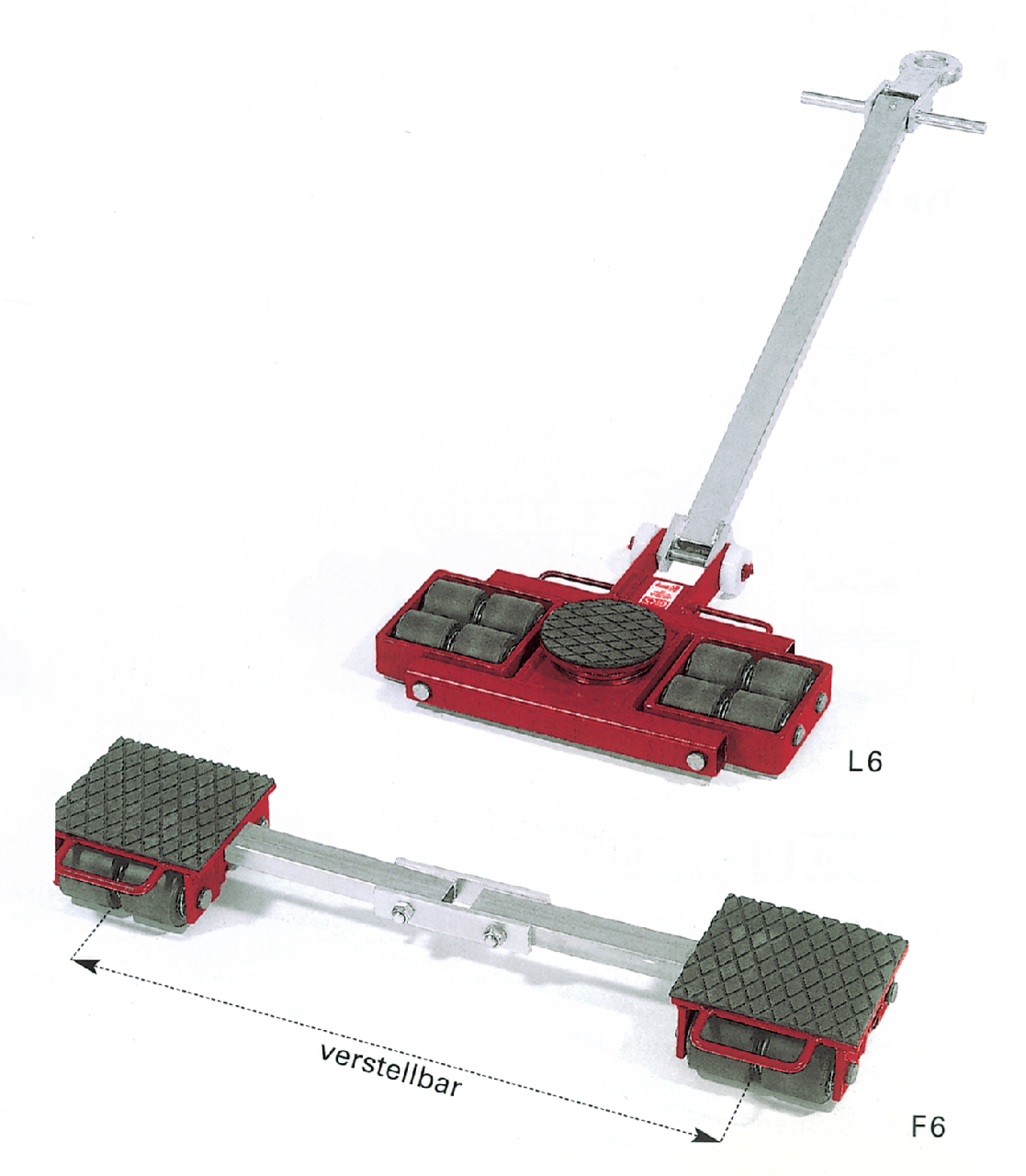

L6/F6 set:

  • Standard transport set for heavy loads up to 12tons.
  • Extremely low loading height.
  • All transport trolleys from F/L3 to F/L18 are interchangeable due to identical loading height.


Contact us for more possibilities! Sets available up to 120t.

Part Code Type Loading height
mm
Contact surface
mm
Single load
ton
Number of wheels l6-f6 total cap.
ton
Wheels diameter
mm
adjustable
mm
Swivel plate dia.
mm
l x w
mm
Swivel plate steerable at Steering rod
mm
Weight
kg
CAD
16.99GKSF06 Rear, Stationary 110 200x220 6 8 12 85x85 640-1030 30
16.99GKSL06 Front, Steerable 110 6 8 12 85x85 170 610x520 ca 90° 1,080 41
