General: Load binder for two-part lashing systems, with pre-mounted shortening hooks with safety catch.

  • Material: Alloy steel grade 12.
  • Marking: According to standard, Pewag or PW, winner pro or 12, H16, CE, batch code and type.
  • Finish: Light blue powdercoated.
  • Standard: EN 12195-3
  • Warning: Not to be heat-treated.
  • Safety factor: 2:1.
  • Grade: 12
RSPSWP_Ratschenspanner_ohne_Mae

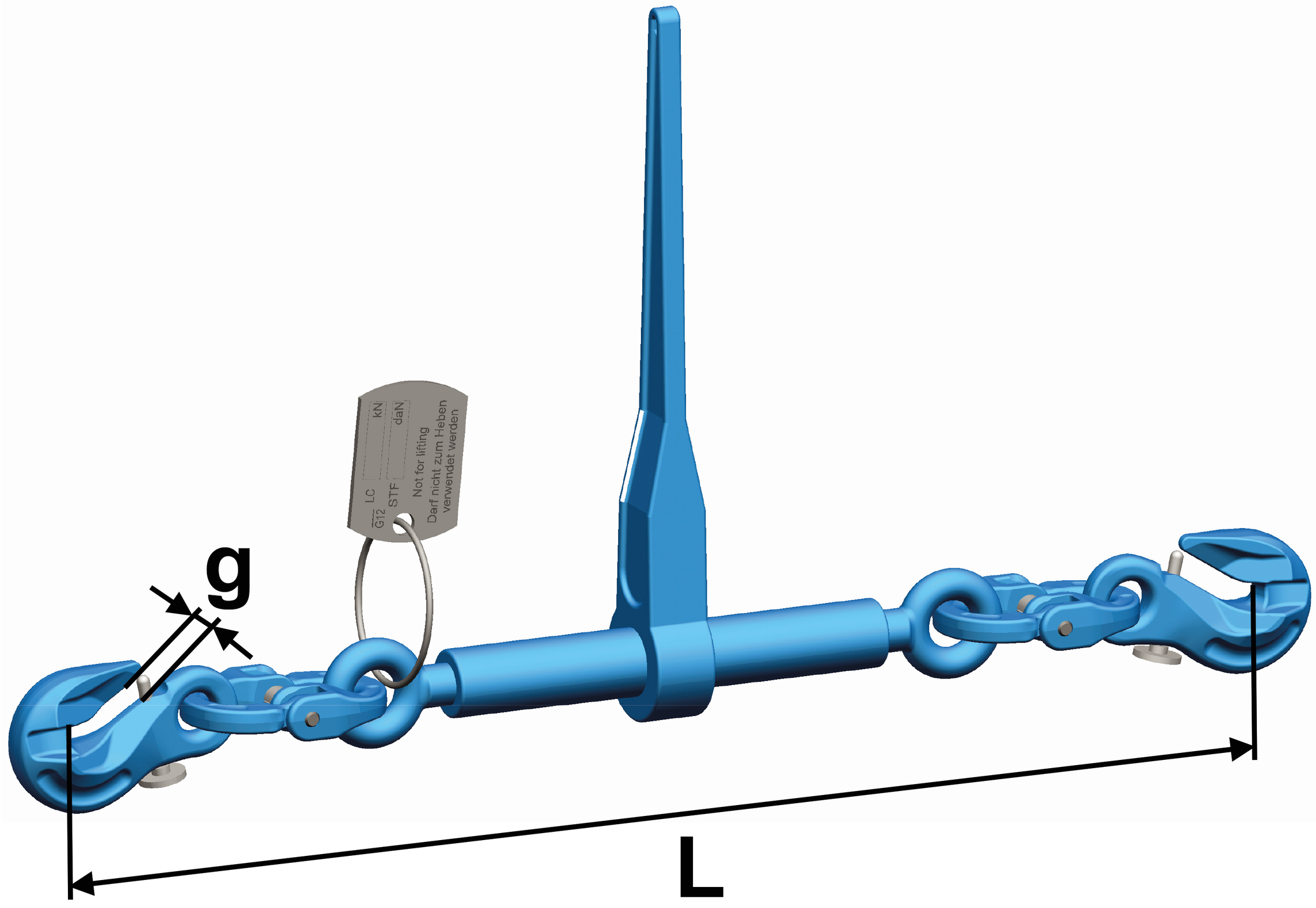

RSPSWP Load binder_Bemassung
Part Code Code LC (kN) STF standard tension force daN Length closed L Length open L Tension range (m) Lever length I Jaw size g (mm) Weight
kg
CAD
14.1089138. RSPSWP 7 47 1,900 586 741 155 10 237 4.6
14.1089139. RSPSWP 8 60 1,900 600 755 155 10 237 4.9
14.1089140. RSPSWP 10 100 3,000 674 829 155 13 355 6.7
14.1089141. RSPSWP 13 160 2,500 981 1.278 297 17 359 15.7
