General: Designed specifically to provide maximum grab width adjustment. Incorporating adjusting mechanism and lifting shackle.
Proof load: 2 x WLL.
Safetyfactor: 5:1.


  • Finish: Yellow painted.
  • Note: All WLL apply to vertical lifting only.
  • Safety factor: 5:1.
Product Image 2
Part Code Code WLL
ton

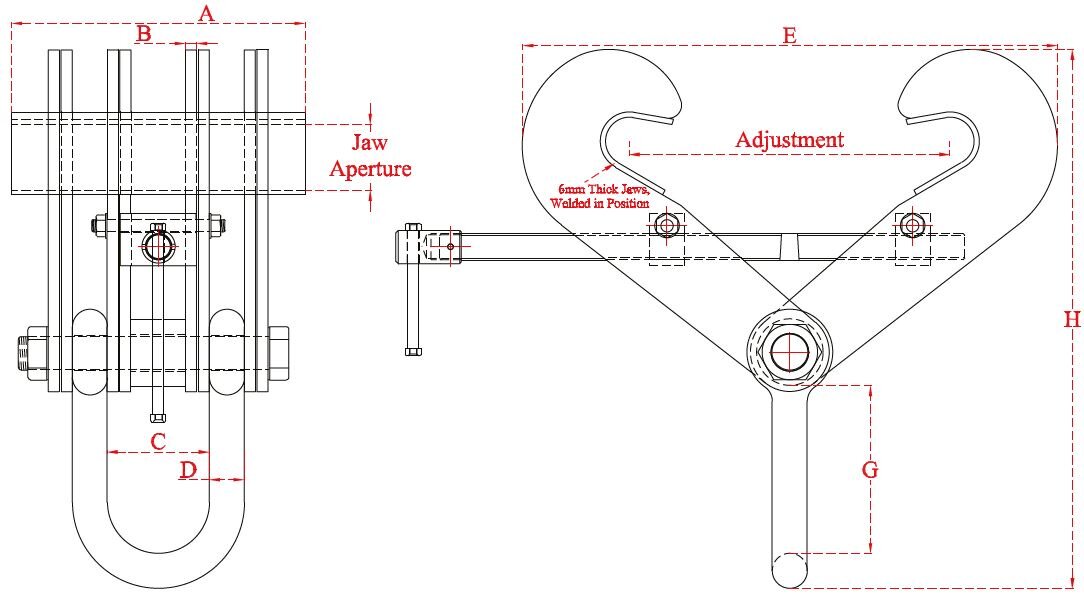

Grab width A (mm) B (mm) T (mm) U (mm) Weight
kg
CAD
16.02S01 S1 2 76-190 22 95 3 4
16.02S02 S2 3 76-190 22 95 6 5.1
16.02S02A S2A 3 76-190 22 95 12,5 8
16.02S03 S3 4 150-254 22 99 10 11
16.02S03A S3A 5 150-305 32 105 12,5 15
16.02S04S S4S 6 203-457 42 105 12,5 19
16.02S04A S4A 10 203-457 42 130 20 27
