This range of trolleys are fitted with horizontal guide rollers and are used for connecting the moving cross members to the inner side tracks. For standard crane applications it is recommended that only one side of the cross member is fixed allowing the other side to move freely to facilitate track misalignment.

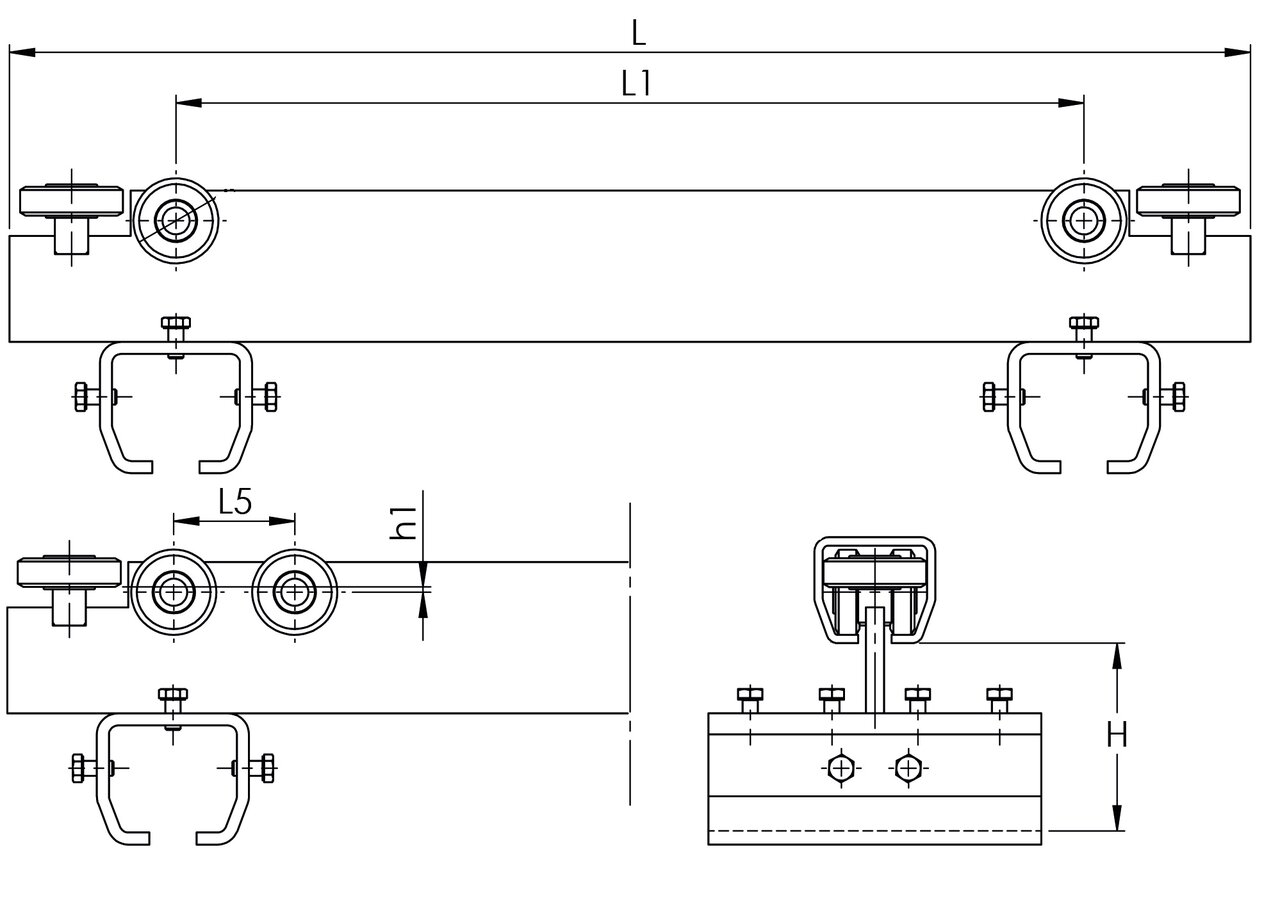

T53 dwg
Part Code Profile No. Item ref. L
mm
L1
mm
L5 (mm) H
mm
h1
mm
CAD
13.0223.T53 23,000 23.T53 410 300 40 64 0,5
13.0224.T53 24,000 24.T53 630 495 50 74 2,6
13.0225.T53 25,000 25.T53 700 500 60 91 3,5
13.0226.T53 26,000 26.T53 820 600 70 126 4
13.0227.T53 27,000 27.T53 860 600 100 152 5,5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
