We recommend this type of wall jib crane for lifting and handling of loads above 500 kg. Our standard programme has been designed in load groups from 500 kg up to 3.200 kg. All these cranes are designed with an IPE-profile jib arm, which is ideal for use together with an electrical trolley.
The wall mounted jib cranes are assembled with a separate C-profile for cable, hose etc.

Electrical chainhoist: When using an electrical chain hoist we can offer a wide selection of hoists as well as electrical and manual trolleys. We recommend an electrical trolley for this type of crane.

Design: Lightweight welded beam construction providing good torsional stiffness.

Proof load: Usually 1,5 x WLL.

  • Material: Beam and plate of high-strength structural steel.
  • Marking: Working load limit (WLL), CE marking, manufacturer, serial number, year of manufacturing, etc.
  • Finish: Yellow painted. Other treatments available on request.

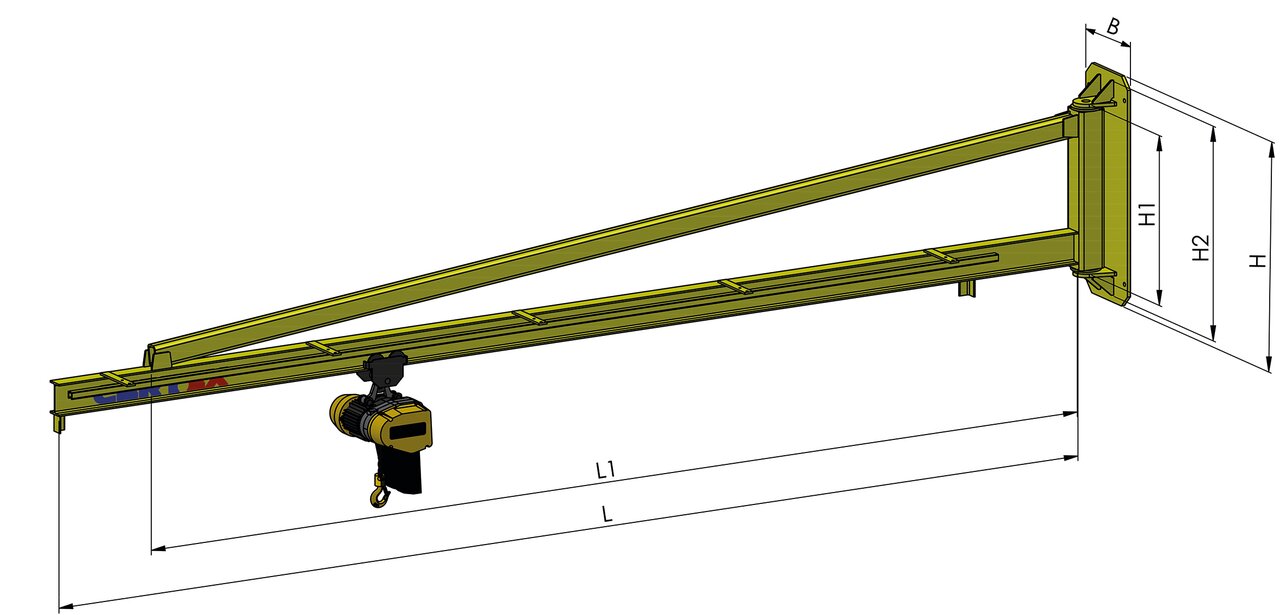

Part Code WLL Type Max. hoist weight (kg) Max. total weight (kg) IPE Flange width (mm) L
mm
L1
mm
H
mm
H1
mm
H2
mm
B
mm
CAD
13.2153-20053000 0.5 VK-I-500/3 55 555 120 64 3,000 2,500 1,000 750 800 350
13.2153-20054000 0.5 VK-I-500/4 55 555 140 73 4,000 2,500 1,000 750 850 400
13.2153-20055000 0.5 VK-I-500/5 55 555 160 82 5,000 4,500 1,000 750 850 400
13.2153-20056000 0.5 VK-I-500/6 55 555 160 82 6,000 5,500 1,000 750 850 400
13.2153-20103000 1 VK-I-1000/3 58 1,058 140 73 3,000 2,500 1,000 750 850 400
13.2153-20104000 1 VK-I-1000/4 58 1,058 160 82 4,000 2,500 1,000 750 850 400
13.2153-20105000 1 VK-I-1000/5 58 1,058 180 91 5,000 4,500 1,300 1,000 1,100 450
13.2153-20106000 1 VK-I-1000/6 58 1,058 200 100 6,000 5,500 1,300 1,000 1,100 450
13.2153-20203000 2 VK-I-2000/3 88 2,088 180 91 3,000 2,500 1,300 1,000 1,100 450
13.2153-20204000 2 VK-I-2000/4 88 2,088 200 100 4,000 3,500 1,300 1,000 1,100 450
13.2153-20323000 3.2 VK-I-3200/3 142 3,342 200 100 3,000 2,500 1,300 1,000 1,100 450
13.2153-20324000 3.2 VK-I-3200/4 142 3,342 240 120 4,000 3,500 1,300 1,000 1,100 450

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
