Fjedersplit B pic

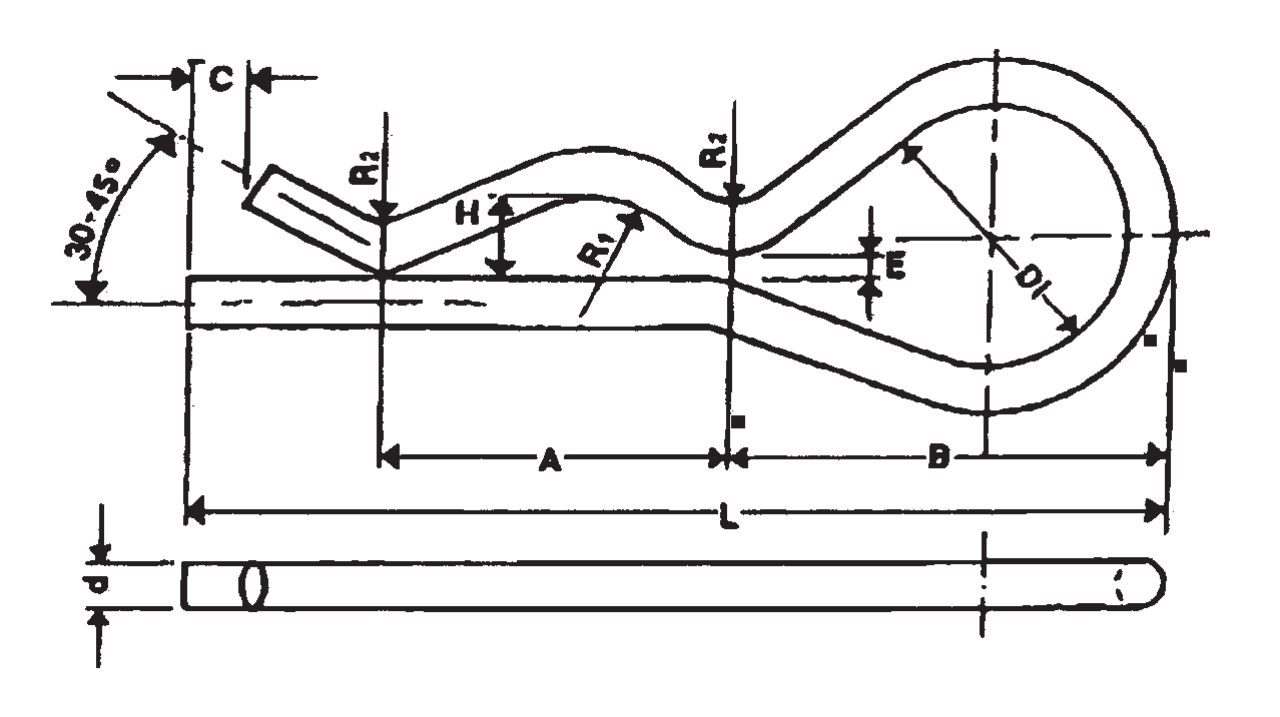

fjedersplit B dwg
Part Code Diameter
mm
Di L
mm
A
mm
B
mm
C
mm
E
mm
H
mm
R1
mm
R2
mm
Weight
kg/100pc
CAD
11.56FSP2B 2 10 43 16 16 4 2 3 3 2 2.32
11.56FSP2.5B 2.5 10 45 17 17 5 1 2 4 2 2.59
11.56FSP3B 3 13 54 18 22 3 1 3 4 2 6.26
11.56FSP3.5B 3.5 17 67 21 27 8 1 4 5 4 10.72
11.56FSP4B 4 19 75 26 31 4 2 4 7 5 16.56
11.56FSP5B 5 ´27 107 33 44 9 2 5 14 5 35.49
11.56FSP6B 6 31 117 42 52 5 3 11 20 6 55.89

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
