General: Welded Master Link designed for 1 leg chain, wire rope and webbing slings.
At least 25% greater WLL than traditional G80 products.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL)
  • Finish: Blue Painted
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10

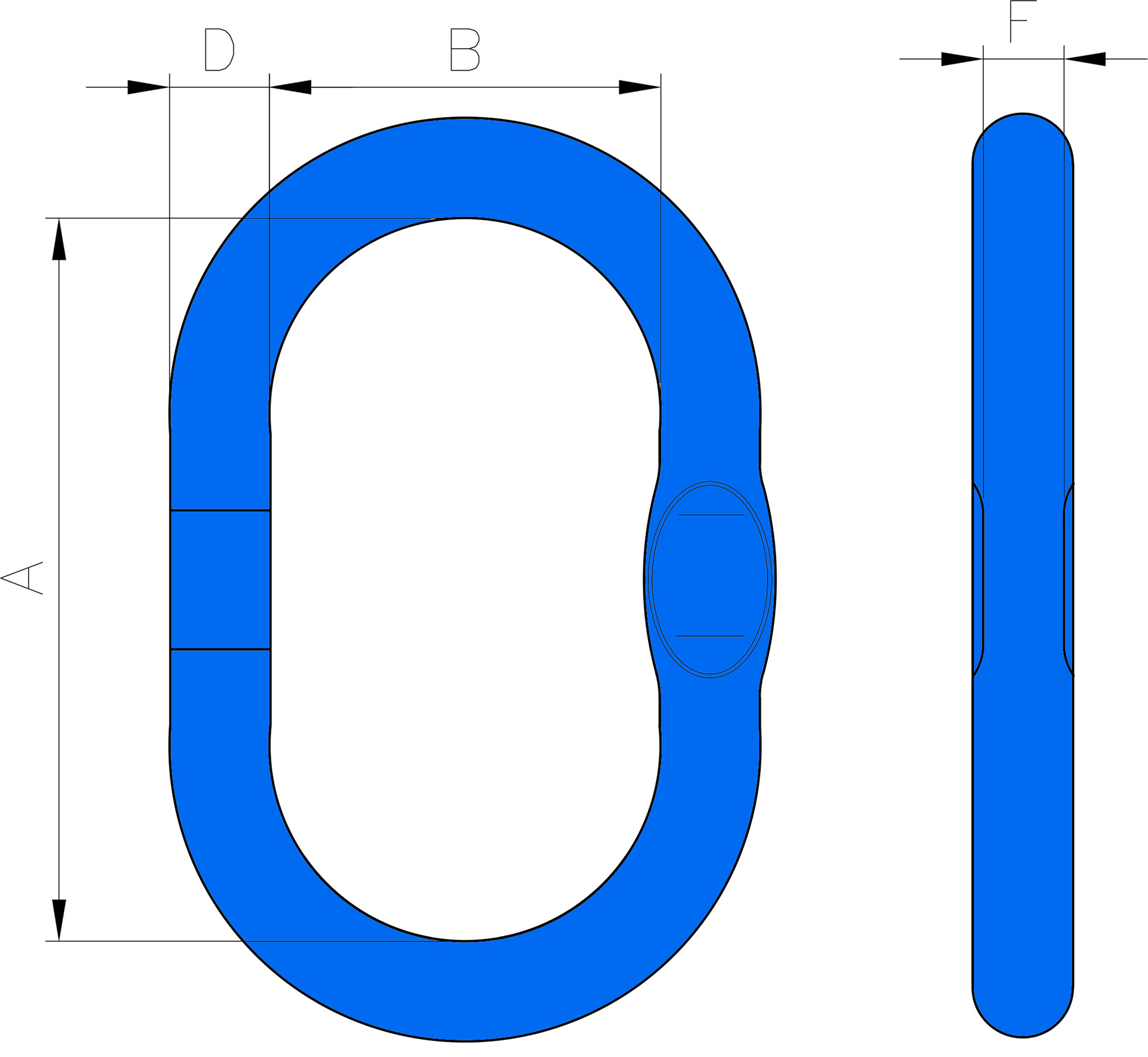

Product Picture 2
Part Code Code Proof Load (kN) WLL ß 0-45° Used to single hook acc. to DIN 15401 No. For grade 100 Chain 1-leg (mm) D
mm
A
mm
B
mm
Weight CAD
11.02X-0080-28 ED-28 164 6,7 25 13 28 340 180 4.7
11.02X-0080-32 ED-32 245 10 25 16 32 340 180 6.2
11.02X-0080-40 ED-40 466 19 25 20,22 40 340 180 10
