General: Welded Master Link designed for 1-2 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional G80 products.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10

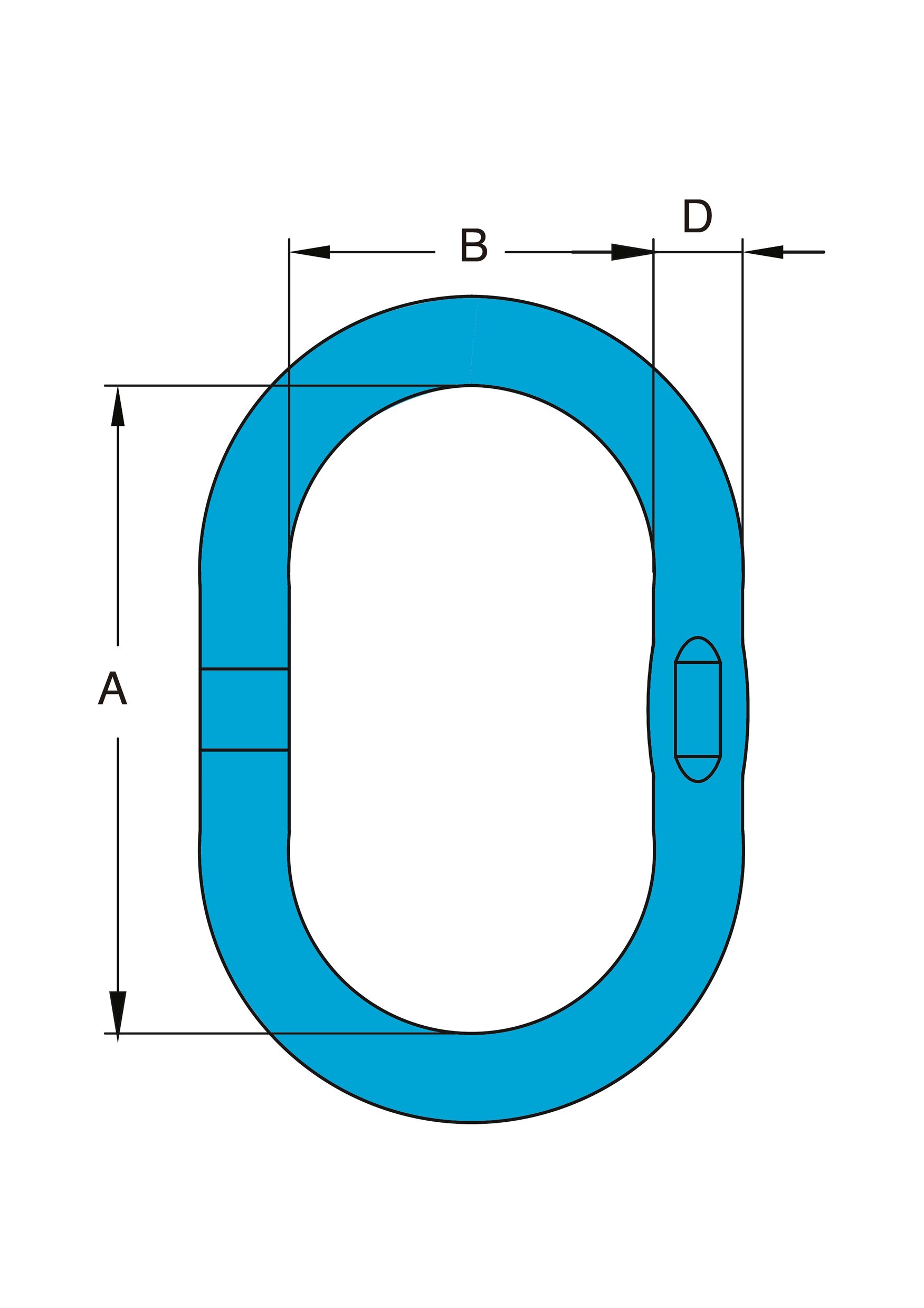

Part Code Code WLL
ton
Proof Load (kN) For grade 100 Chain (mm) Single leg For grade 100 Chain (mm) Doubleleg Din 15401.NO D
mm
A
mm
B
mm
Weight
kg
CAD
11.02X-002W-13 CD-13 2.8 69 7,8 6 4 13 120 70 0.4
11.02X-002W-16 CD-16 4 98 10 7,8 5 16 140 80 0.7
11.02X-002W-19 CD-19 6.7 164 13 10 6 19 160 95 1.1
11.02X-002W-22 CD-22 8.5 208 13 10 10 22 170 105 1.6
11.02X-002W-28 CD-28 11.5 282 16 13 10 28 190 110 2.9
11.02X-002W-32 CD-32 17 417 20 16 12 32 230 130 4.5
11.02X-002W-36 CD-36 25.1 615 22 20 20 36 275 150 6.7
