General: Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional G80 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10
Product Picture 1
Product Picture 2

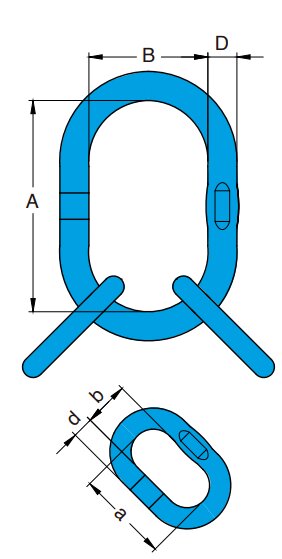

Part Code Code WLL β 0-45°" (ton) Used to single hook acc. to DIN 15401 No. For Grade 100 Chain 2-leg (mm) For Grade 100 Chain 4-leg (mm) Proof Load (kN) D
mm
A
mm
B
mm
d (mm) a (mm) b (mm) Weight
kg
CAD
11.02X-0082-22 ED-22 3,55 25 6,7,8 6 87 22 340 180 13 54 25 3.2
11.02X-0082-28 ED-28 5,6 25 10 7,8 137 28 340 180 16 70 34 5.4
11.02X-0082-32 ED-32 9,5 25 13 10 233 32 340 180 19 85 40 7.4
11.02X-0082-40 ED-40 14,1 25 16 13 343 40 340 180 22 115 50 12.1
11.02X-0082-401 ED-40 21,2 25 20 16 519 40 340 180 25 140 65 14.2
