General: Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional G80 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10

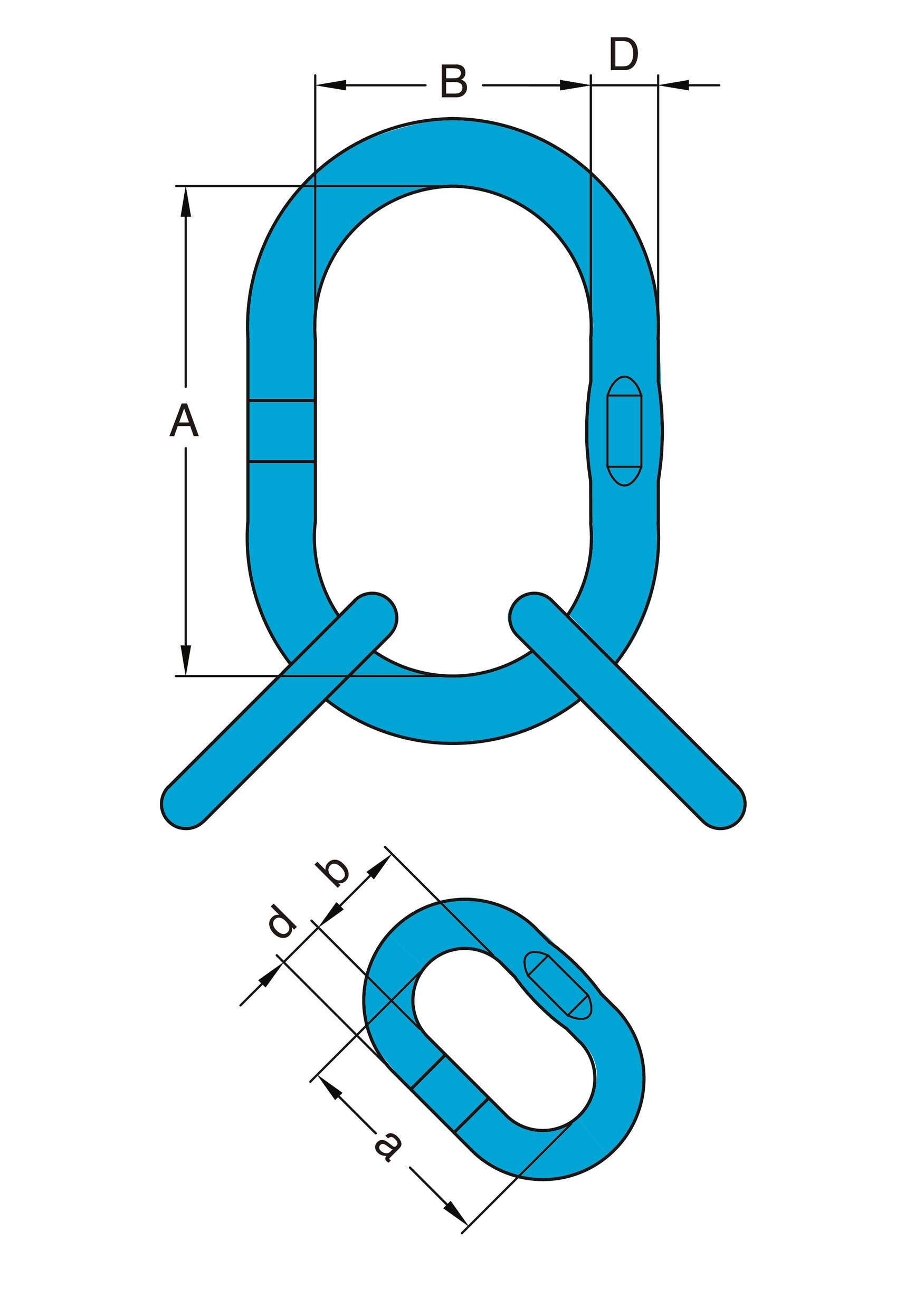

Product Picture 1
Part Code Code Proof Load (kN) WLL β 0-45°" (ton) Used to single hook acc. to DIN 15401 No. For Grade 100 Chain 3- and 4-leg (mm) D
mm
A
mm
B
mm
d (mm) a (mm) b (mm) Weight
kg
CAD
11.02X-006L-19 BD-19 + 2 DD+13 103 4,2 5 6 19 135 75 13 110 60 1.6
11.02X-006L-22 BD-22 + 2 DD+16 201 8,2 6 7,8 22 160 90 16 110 60 2.5
11.02X-006L-32 BD-32 + 2 DD+22 262 10,7 10 10 32 200 110 22 160 90 6.9
11.02X-006L-36 BD-36 + 2 DD+28 385 15,7 16 13 36 260 140 28 180 100 11.8
11.02X-006L-45 BD-45 + 2 DD+32 544 22,2 25 16 45 300 180 32 200 110 19.7
