Certification: 2.1 2.2 3.1 MPI b DGUV

  • Material: Alloy steel, grade 8, quenched and tempered
  • Marking: According to standard
  • Finish: painted yellow (J) or red (R)
  • Standard: EN 1677-1
  • Safety factor: MBL equals 4 x WLL
  • Grade: 8
Product Image 1
Product Image 2

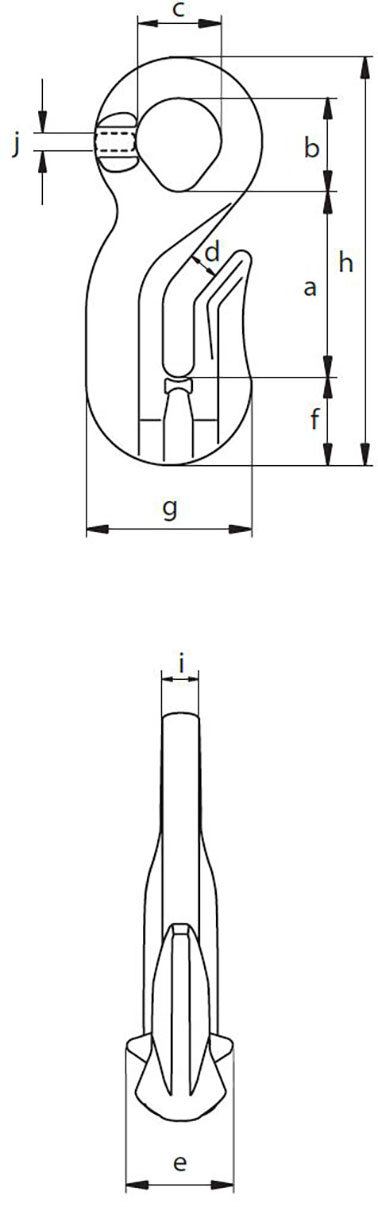

Part Code WLL for chain diameter (mm) width outside g (mm) length outside h (mm) width i (mm) Width f (mm) inside length eye b (mm) inside width eye c (mm) Opening d (mm) thick-ness e (mm) thick-ness j (mm) length a Weight
kg
CAD
11.20CRO6J 1.12 6 42 94 9 20 24 23 8 24 6 41 0.25
11.20CRO7-8J 2 7-8 53 115 10 23 27 26 10 33 8 53 0.45
1120CRO10J 3.2 10 66 146 14 29 38 36 12 40 10 65 0.91
1120CRO13J 5.4 13 88 183 16 40 42 41 15 56 12 83 1.99
1120CRO16J 8.2 16 96 211 20 43 44 41 18 66 20 103 2.49
1120CRO20J 12.8 20 128 241 26 48 37 37 22 75 26 130 4.3
1120CRO22J 15.5 22 132 247 26 57 44 44 25 77 26 120 8.5
1120CRO26J 21.6 26 177 320 32 82 46 46 30 100 32 158 14.7
1120CRO32J 32.8 32 215 395 39 88 57 57 38 91 39 210 18
