General: Clevis grab hook.
Certification: 2.1 2.2 3.1 MPI b.

  • Material: Alloy steel, grade 8, quenched and tempered.
  • Marking: According to standard
  • Finish: Painted yellow (J) or red (R)
  • Standard: EN 1677-1
  • Safety factor: MBL equals 4 x WLL
  • Grade: 8
Product Image 1
Product Image 2
Part Code WLL
ton

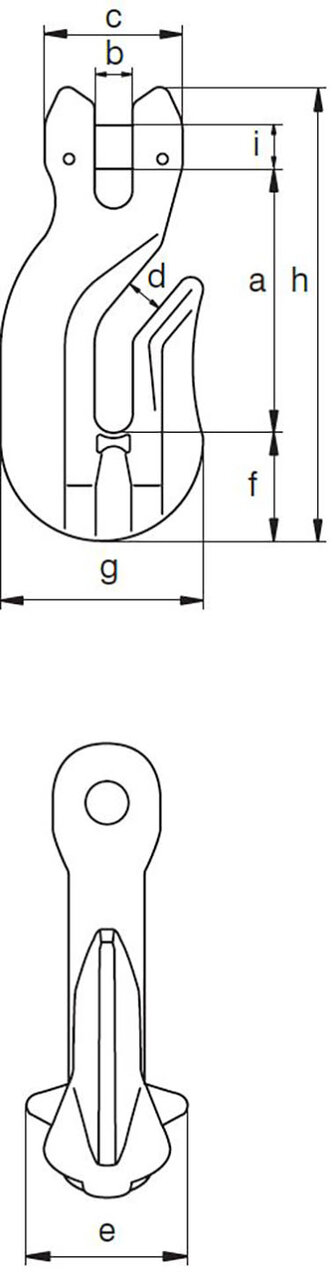

for chain diameter Width f (mm) Length a (mm) Thickness e (mm) width outside g (mm) Opening d (mm) length outside h (mm) diameter pin i (mm) Weight
kg
CAD
11.20CRC6J 1.12 6 19 52 24 42 7 86 8 0.28
11.20CRC7-8J 2 7-8 23 64 33 53 10 104 9 0.45
1120CRC10J 3.2 10 29 75 40 66 12 127 13 0.88
1120CRC13J 5.4 13 40 103 56 88 15 173 16 2.17
1120CRC16J 8.2 16 43 127 65 96 18 208 20 2.81
