General: Stainless steel lifting chain, electrically welded and stamped, guaranteed compatible with Connex CWI connectors.

Standard: Similar DIN 5687-1 repr. EN 818-2. 100% tested.

  • Material: 1.4404 (AISI 316L).
  • Finish: Brightly polished.
  • Safety factor: 4:1.
  • Grade: 6
WOX Kette G6
KLM_e_225mm
Part Code Code WLL
ton
Min. breakingforce
kN
MBL
ton

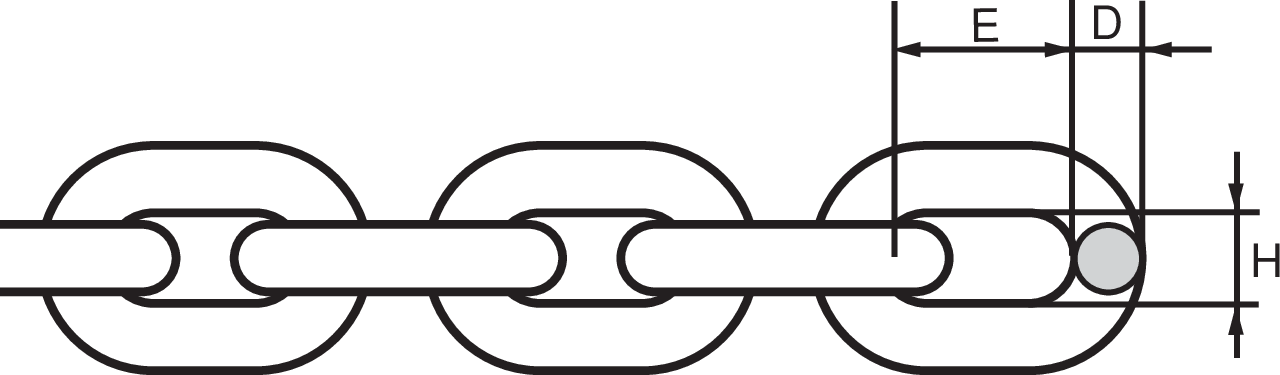

Nominal dia. dn Outside width max. (mm) Inside width min. Weight kg/m. E (mm) H (mm) CAD
11.6337931 WOX 4-6 0.4 16 1.6 4 14,8 5,8 0,40 12 6,2
11.6338094 WOX 5-6 0.63 25 2.6 5 18,5 7,5 0,61 15 7,5
11.6338110 WOX 6-6 0.9 37.5 3.8 6 21,5 8 0,88 18 8,7
11.6338113 WOX 7-6 1.25 50 5.1 7 25,2 9,5 1,19 21 9,5
11.6338116 WOX 8-6 1.6 63 6.4 8 28,6 10,8 1,53 24 10,8
11.6339568 WOX 10-6 2.5 100 10.2 10 36,0 13,5 2,40 30 13,5
11.6339904 WOX 13-6 4.25 170 17.3 13 46,8 17,5 4,05 39 17,5
11.6340205 WOX 16-6 6.3 250 25.5 16 57,6 21,5 6,00 48 21,5
11.6383501 WOX 20-5* 8 314 32 20 72 27 9,29 60 27
11.6392200 WOX 26-4+** 12 471 48 26 93,6 35 16,20 78 35
* WOX 20-5 is grade 5
** WOX 26-4+ is grade 4+
